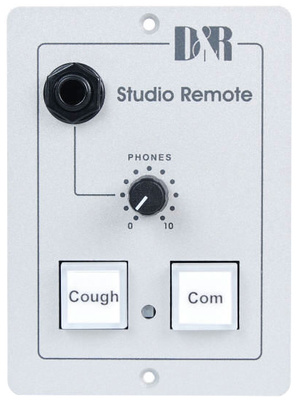

We can supply you a perfect matching Studio Remote Control for in the presenters area.
This unit activates the CUE switch of the 2014 EXTENDER unit (not for the main unit, sorry) to communicate with the engineer.
The Cough button deactivates the ON button (in the Extender only, sorry)
There is a linkable phones circuit to daisy chain more than one Studio Remote unit in case more microphones are used.
INTRODUCTION

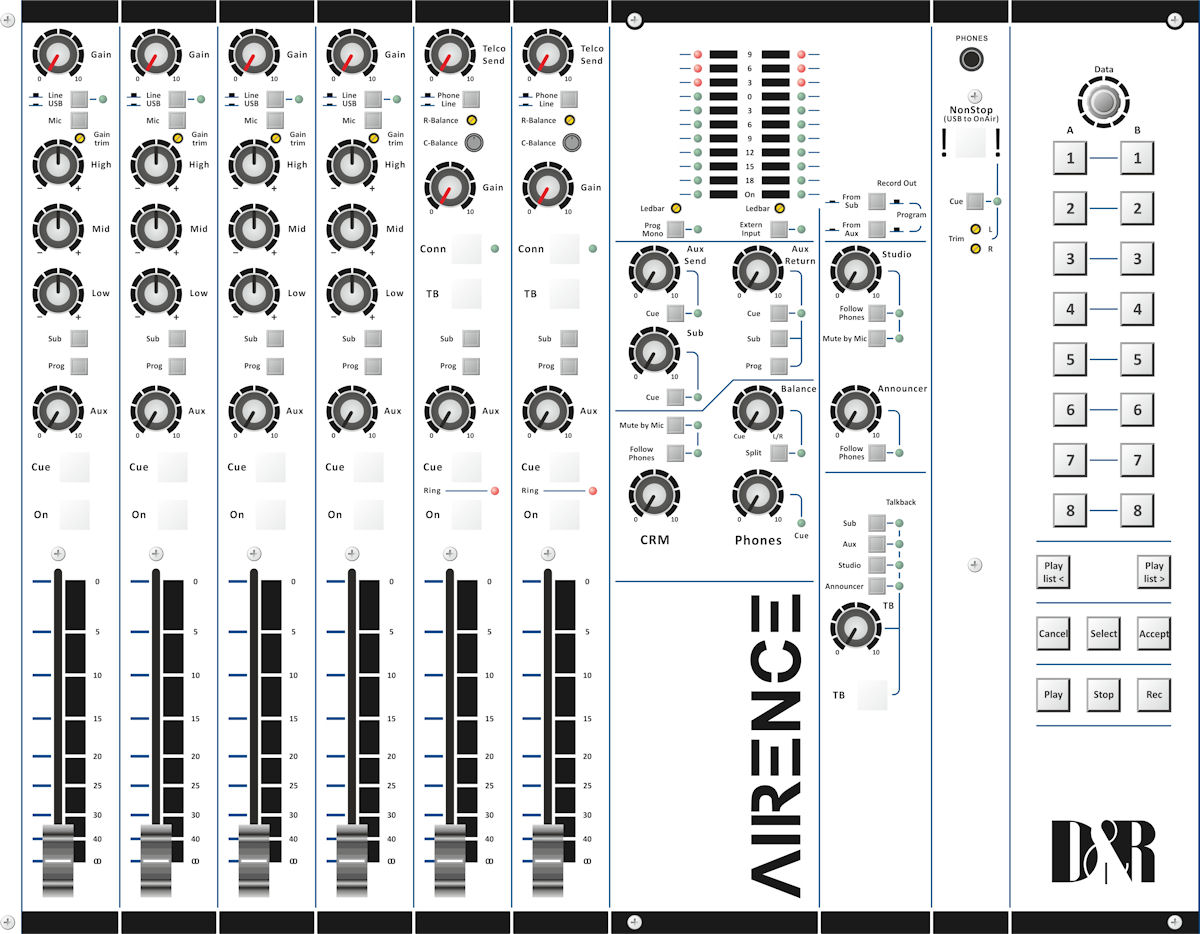

With the AIRENCE-USB ON-AIR mixer you can own a modern, split version type of radio production mixer. A smart mixer with an integrated USB based control section. Built with well proven low noise circuitry, this console is the reliable workhorse for the self-op production D.J. Built in Telephone Hybrids (2x), 4 channels USB and 4 Mic inputs. Ideal for streaming to the web and sending and accepting 4 stereo channels from your Play-out software.
A heavy duty (19" rack) RF shielded chassis, that can be used as a drop through in your furniture, houses all the vertically mounted input modules. Extension units with six triple input channels with high end quality Mic inputs on XLR and two stereo line level inputs on Cinch (RCA) connectors can be connected to the main unit. The result is a modern split drop through 12 (or 18/24) fader radio console.
MIC, LINE, USB AND TELEPHONE IN-OUTPUTS
This brand new AIRENCE-USB model has 4 balanced mic inputs (+48 phantom is standard) with inserts for signal processors, 6 stereo line inputs, 4x USB channels and 2x Telephone Hybrids. If you would like to call with VOIP we would advice to use the CISCO SPA112 as an interface between our 2 Telephone modules and the Internet. One physical USB connection interfaces 4 stereo audio channels from and to your PC plus all (programmable) remote controls on the right hand section of the mixer. Channel 5 and 6 have, apart from the stereo line input, also RJ-11 connectors to interface with an analogue telephone line and a common dial unit.
High quality built in Hybrids with R and C balance and direct Talk back to the Hybrid channels makes conversation with callers very easy. Also by simply pushing the Cue button, conversation between DJ and caller outside the broadcast is of course possible.
The illuminated front panel ON switch is electronically attached to the built in mechanical fader start enabling selection of a play-out start either by fader or via the ON switch. Fader start generates in the Mic mode a Mic-on signaling to switch ON-Air lights. There is a 3 band Equalizer on channel 1-4 and on all 6 Triple input channels of the Extender Unit. The stereo Aux send can be set pre or post fader. All high quality low noise mic inputs have low cut jumpers.
EXTENSIVE MASTER SECTION DESIGNED WITH RADIO IN MIND
The AIRENCE-USB has all the master controls such as 100 mm stereo master faders, stereo Aux send and return, monitor master with "follow phones" and a phones output with a split listen function.

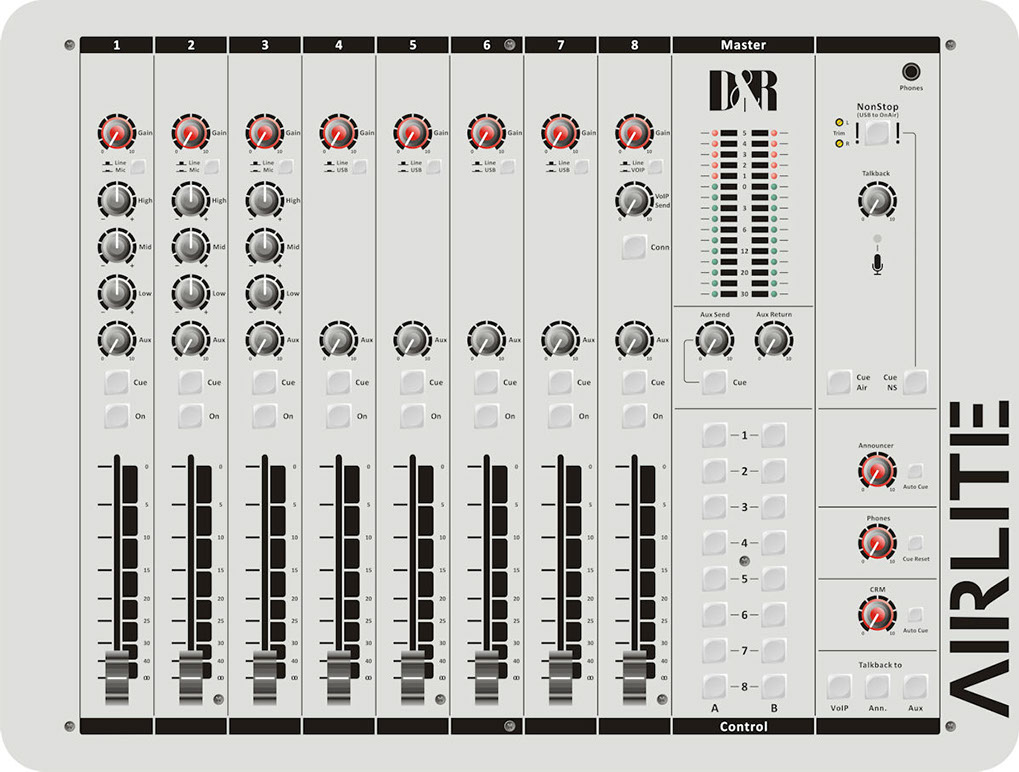

With the AIRLITE mixer you can now own a modern radio mixer for a very attractive price. This new hand built piece of precision equipment is the result of more than 42 years of experience at D&R.
It is an intelligent mixer with an internal USB control section that speeds up daily use and includes a built in Silence Detector.
It is a reliable workhorse for the self-op production D.J. with built in Telephone VOIP functionality.
4 in/out channels of stereo USB and 3 very low noise Mic inputs. The AIRLITE, ideal for ON-AIR, Production and perfect for streaming to the web.
The AIRLITE accepts and instantly controls a maximum of 4 in/out stereo channels from your Play-out software.
It is built into a metal, heavy duty RF shielded, powder coated chassis, designed with elegantly rounded corners. Easily “drops” into your furniture to give that exciting and contemporary radio look. A strong powder coated front panel with reliable controls gives you access to a flawless performance.
For more information visit: http://www.d-r.nl/airlite-usb.html

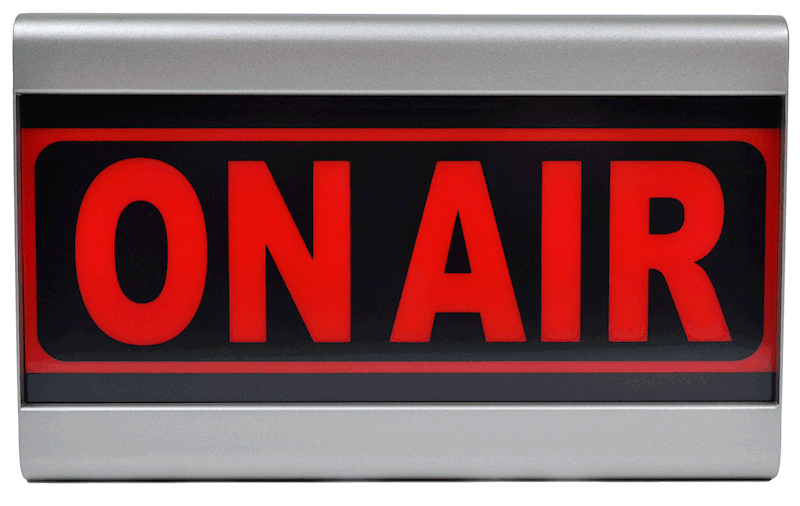

We can supply you a perfect matching ON-AIR light for all our mixers.
You can of course use the unit too for other brands.
We call it ON-AIR Lamp but actually there is no lamp inside anymore, just everlasting high intensity red leds.
The unit is powered by a 12 volt DC 450 mA external power supply.
And what's more... no hassle with how do I connect this thing to my AIRMATE-USB/AIRENCE-USB/AIRLAB or AXUM.
No complicated high voltage AC switching with external relays etc. etc.
What you only need is one stereo cable (wired tip/ring) coming from the MIC-ON connector on the back of the AIRMATE/AIRENCE/AIRLAB console that goes directly hardwired to a barrier strip inside the ON-AIR LIGHT. How easy is this for a change.
The power adapter (included in the delivery) will also be directly wired to the barrier strip inside the unit.

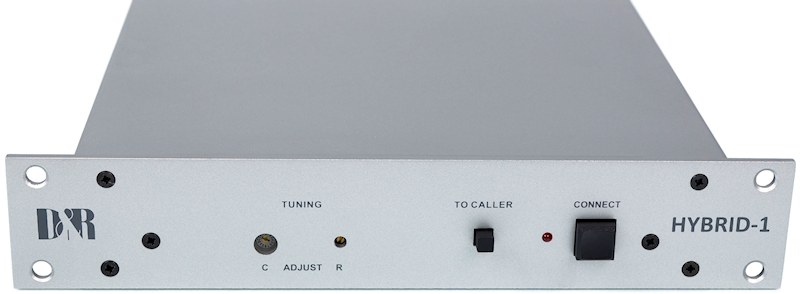

D&R's newest Telephone Hybrid-1 is an interface between a standard telephone line and a mixing console. Its purpose is to enable to record or broadcast a conversation between a caller and a presenter in an easy way.
Superb audio separation between in and outgoing signals are achieved by carefully designed internal circuitry.
It is a problem solver for changing two wire communication into a four wire system with separate in and outputs.
19' 1HE, analoger Telefonhybrid mit sym. I/O, High- und Lowshelf Filter, Duckingfunktion für Telefonteilnehmersignal, fernsteuerbar, GPIO - 19' 1HE, analoger Telefonhybrid mit sym. I/O, High- und Lowshelf Filter, Duckingfunktion für Telefonteilnehme 19' 1HE analoger Telefonhybrid mit sym. I/O High und Lowshelf Filter Duckingfunktion für Telefonteilnehmersignal fernsteuerbar GPIO Interface für Mischpultanschluss Für weitere Informationen, besuchen Sie bitte die Homepage zu diesem Produkt.
539,00 €*
