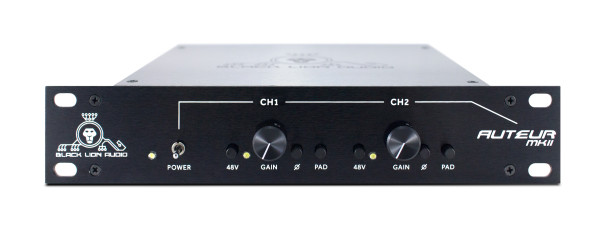

The Auteur MkII is a two channel preamp that features high-speed input stages that capture lots of detail and nuance, and transformer-coupled output stages that impart a nice touch of vintage vibe. It also features phantom power, phase, and a 10dB pad. It’s housed in a 1U, ½ rack chassis, and can be linked together with a second ½ rack unit by using the included connector plate.
Features
Dual Channel
Ultra High-Speed Input Stages
Edcor Output Transformers
65dB Gain
Extended Frequency Response
Low Distortion & Noise
Phantom Power
Phase Switch
10dBu Pad
XLR Microphone Input
TRS Line Output (balanced)

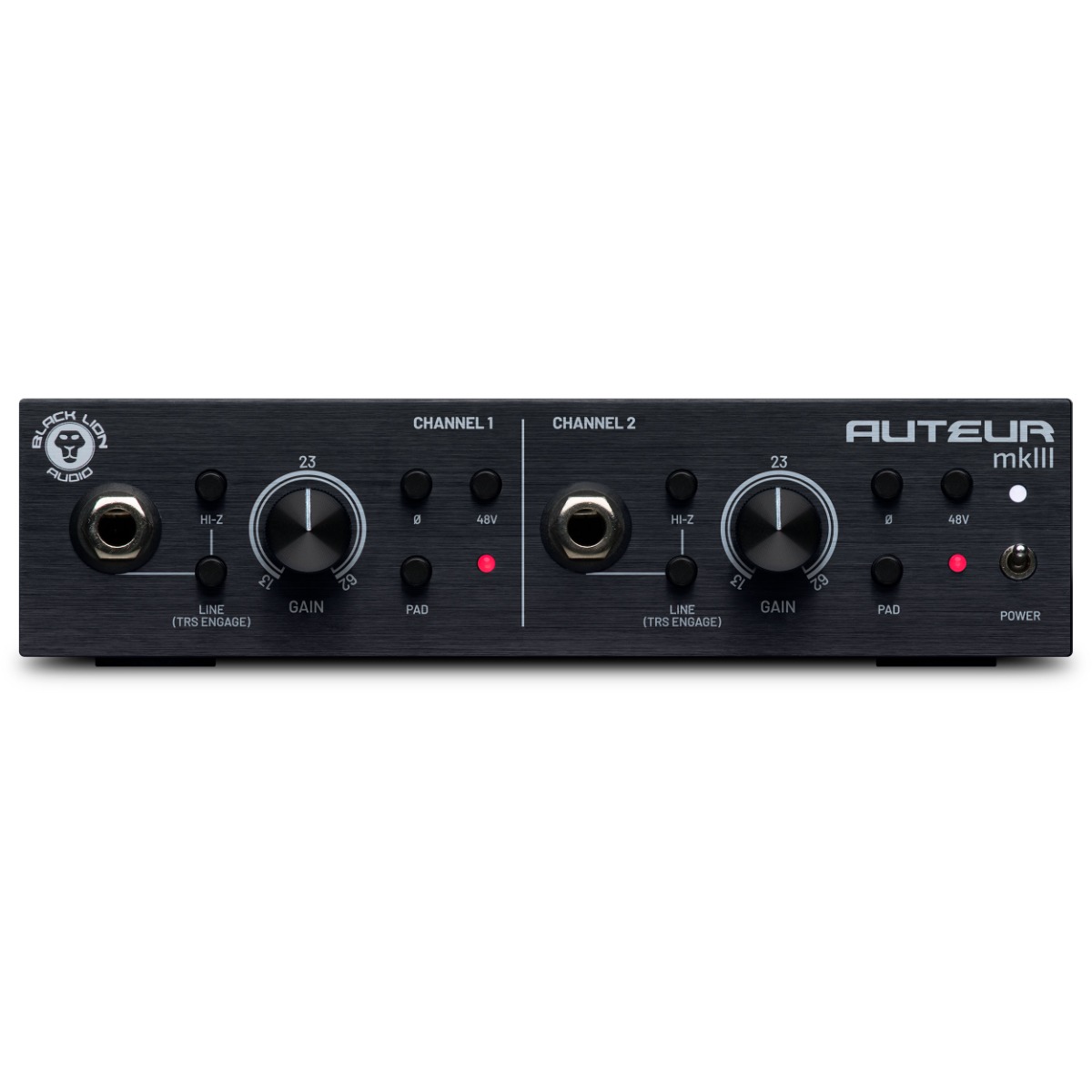

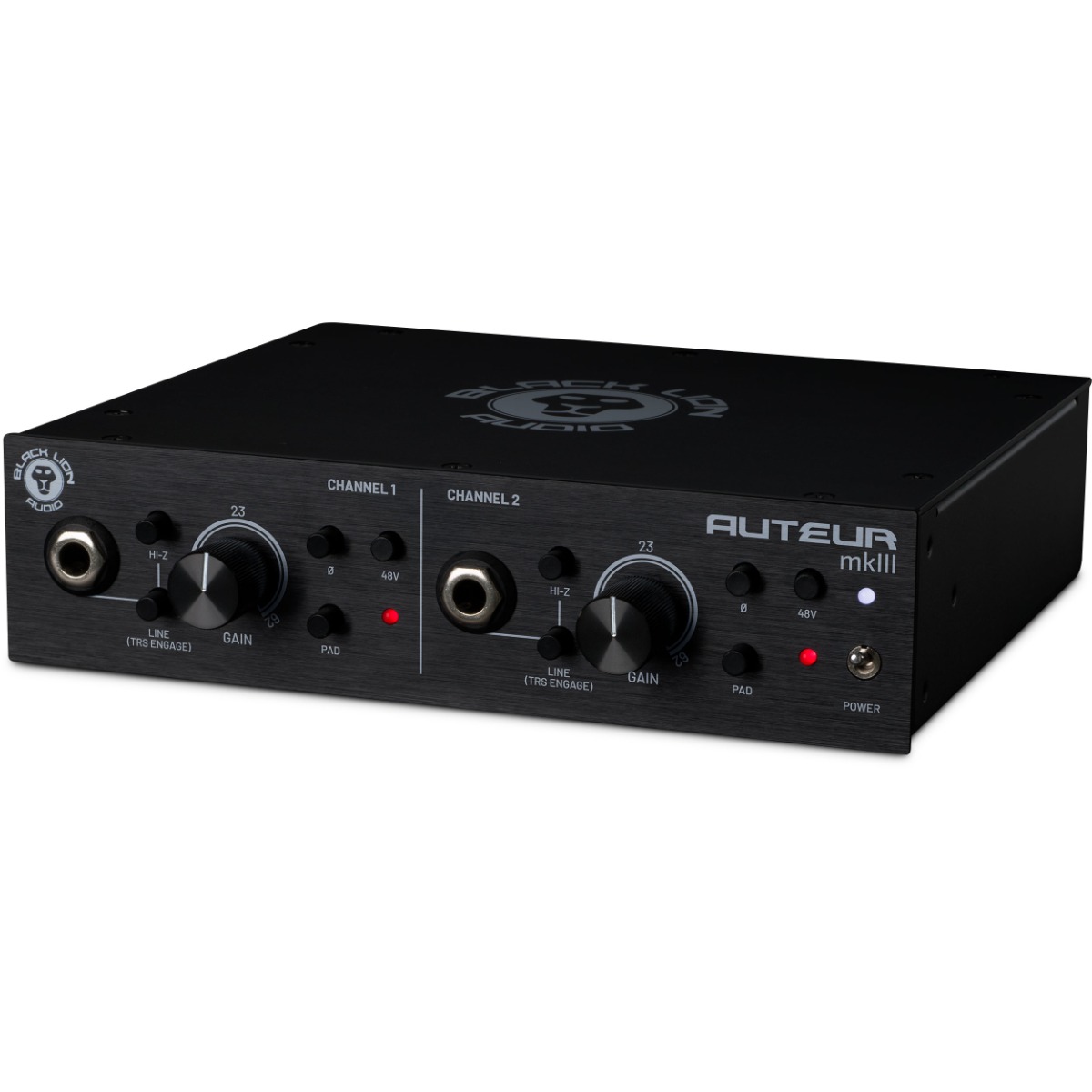

Features
2-channel microphone preamplifier
Modern IC-based front-end for fast and transparent sound
Vintage-inspired transformer-coupled output-stage featuring Cinemag transformers for massive, colorful sound
Line and Hi-Z input
-10dB pad, 48v phantom power, and polarity reverse for each channel
62dB of gain
Balanced TRS line outputs
Removable rack ears included with 1U 1/2 rack compatibility

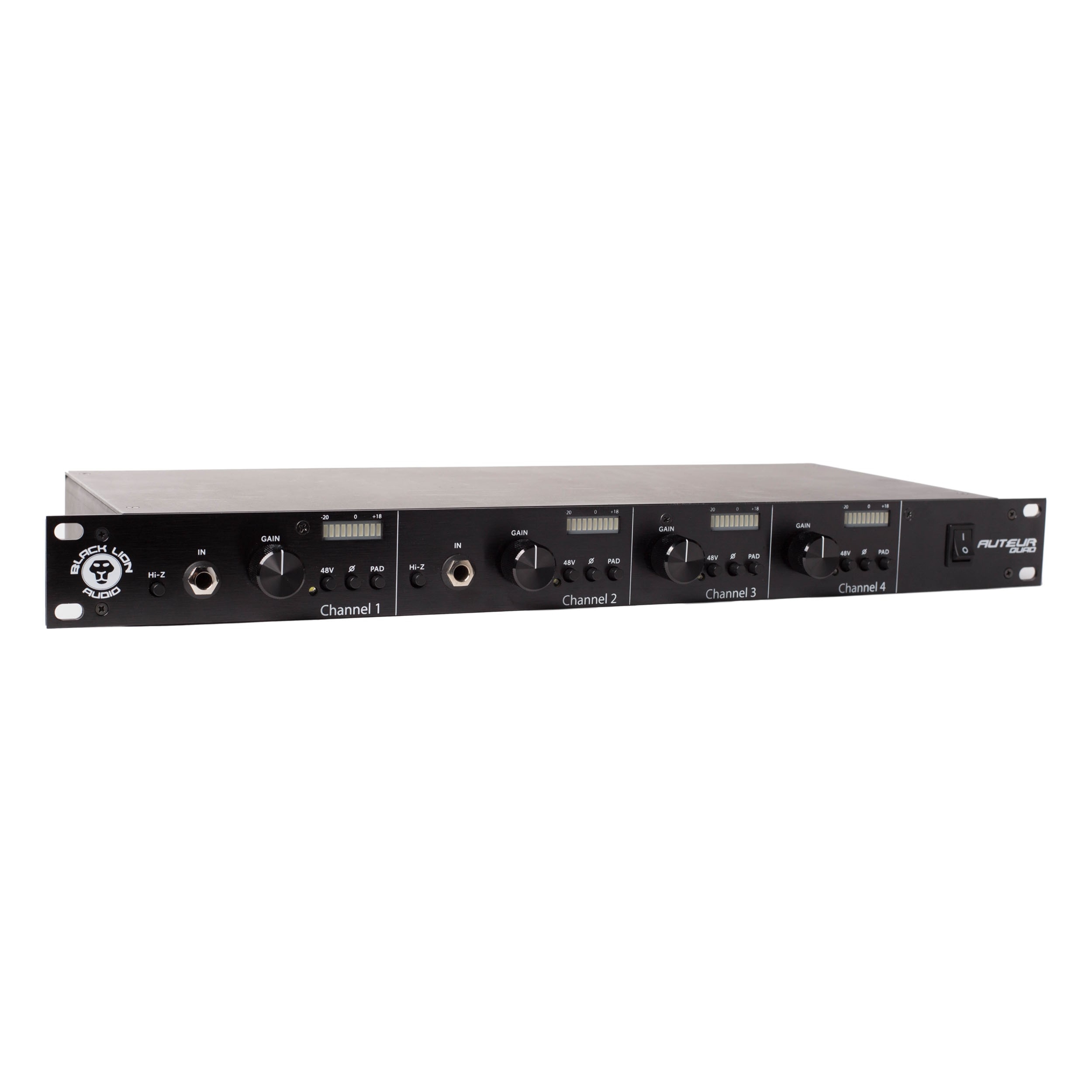

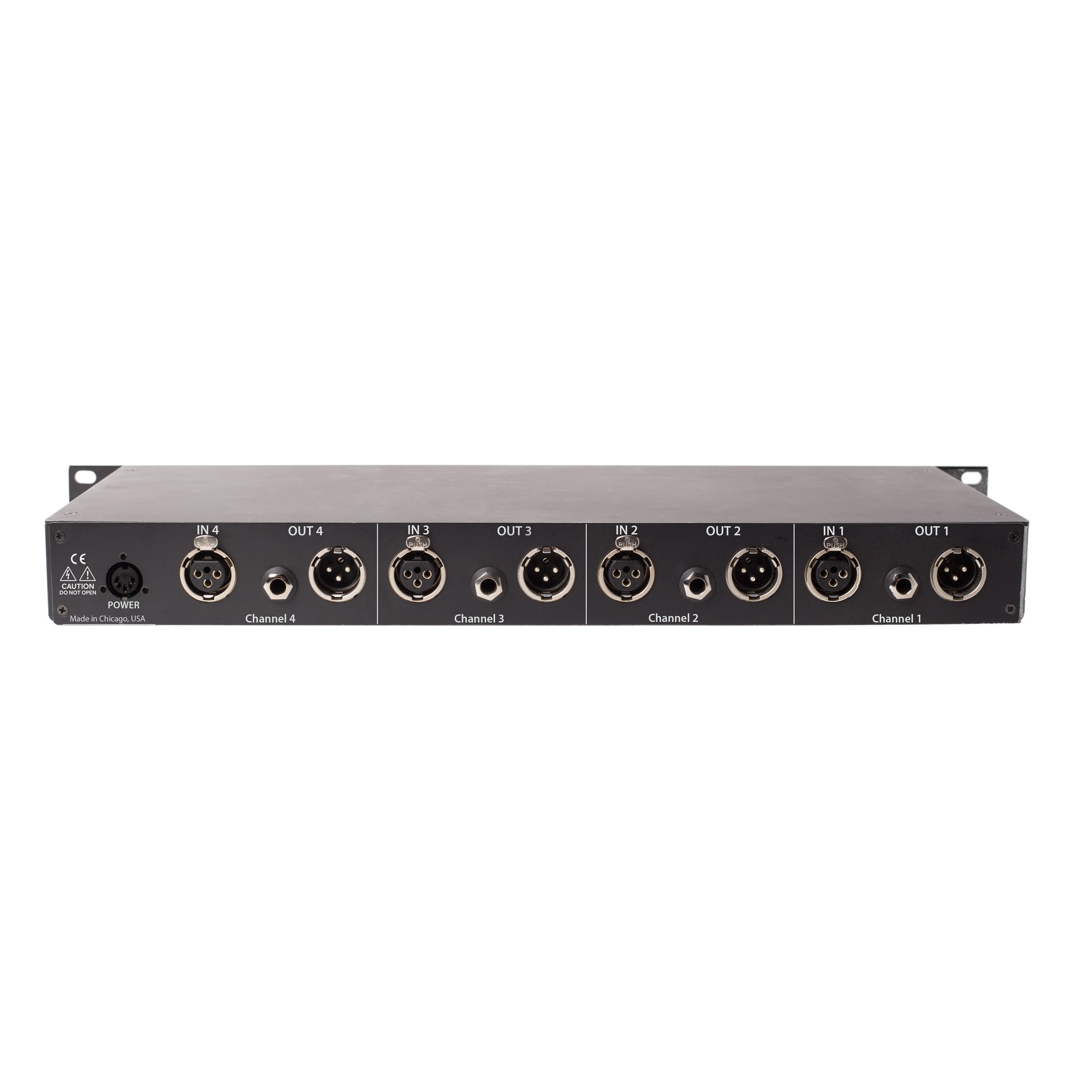

Low noise 4 channel preamp „Made in USA“, accurate sounding all-round preamp for e.g. Vocals, Drums, Guitar, Auteur Mk II circuit design with revamped gain stage, results in higher gain, lower noise, lower distortion, extended frequency response, switchable -10 dB PAD, switchable phase, max. 65dB Gain, input impedance: 6000Ω, output impedance: 150Ω, +48V phantom power
Features:
4 channel Preamp „Made in USA“
Accurate sounding all-round preamp for e.g. Vocals, Drums, Guitar
Auteur Mk II circuit design with revamped gain stage
Ultra High-Speed Input Stages
Edcor Output Transformers
65dB Gain Extended Frequency Response
Low Distortion & Noise
Phantom Power Phase Switch 10dBu Pad XLR Microphone Input
TSR Input XLR Output

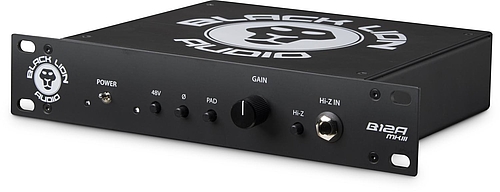

Die amerikanische Legende
Die B12A Verstärkerschaltung von Black Lion Audio nutzt die ganz spezielle Schaltungstopologie amerikanischer Preamps, um deren extrem schnelle, saubere Transientendarstellung kongenial einzufangen. Mit dem B12A mkIII realisiert der Hersteller Vorzüge wie äußerst akkurates Schaltungsdesign, hochwertige Bauteile und einen konsequenten Aufbau mit zwei Cinemag-Übertragern nun erstmals in einer kompakten einkanaligen Version. Das elegante Gehäuse im 9,5-Zoll-Format hält alle wichtigenBedienelemente wie Gainregelung, 48VPhantomspeisung, Phasentausch und Pad-Schalter direkt auf der übersichtlichen Frontplatte bereit.Der hochpräzise gerasterte Eingangspegelregler gewährleistet eine perfekte Reproduzierbarkeit der Einstellungen. Mit dem B12A mkIII aktualisiert Black Lion Audio den echten, unverfälschten US-Sound ohne störende Artefakte.
Musikalischer Sound durch Cinemag-Übertrager
Der Klang klassischer Konsolen war maßgeblich durch ihre speziellen Übertrager geprägt, die eine außergewöhnlich musikalische Wiedergabe bieten. Gleichwohl verzichten viele moderne Schaltungsdesigns aus Kostengründen auf diese aufwendigen Bauteile. Black Lion Audio, ursprünglich auf Reparaturen und die Verbesserung klassischer Studiotechnik spezialisiert, ist sich der Bedeutung von Übertragern im Signalweg bewusst. Mit klarem Fokus auf einen kompromisslos musikalischen Sound wurden bei der Entwicklung des Vorverstärkers B12A mkIII nur hochwertige Bauteile eingesetzt. So ist der Preamp mit Ein- und Ausgangsübertragern des renommierten US-Herstellers Cinemag ausgestattet.
Für alle Signale gerüstet
Der Vorverstärker verfügt über einen rückseitig angebrachten XLR-Eingang sowie über eine TRS-Klinkenbuchse direkt auf der Frontplatte. Über einen Hi-Z-Schalter kann dieser in hochohmigen Betrieb umgeschaltet werden und bietet damit DI-Funktionalität, sodass auch passive Gitarren und Bässe von dem reichhaltigen, warmen Sound der Klangmaschinen von Black Lion Audio profitieren. Über eine weitere, symmetrisch beschaltete TRS-Klinkenbuchse wird das Signal an nachfolgendes Equipment weitergegeben. Der Preamp verfügt über massive Verstärkungsreserven von 70 dB und wurde in seinem Schaltungsdesign optimiert, um das bereits geringe Grundrauschen noch weiter zu senken. Für die problemlose Verwendung mit pegelstarken Signalquellen hält der B12A mkII einen Pad-Schalter bereit. Um Störungen aus dem Stromnetz wirkungsvoll zu minimieren, ist das Gerät mit einem hochwertigen externen Netzteil ausgestattet.
Cinemag Eingangs- und Ausgangsübertrager
vorderseitiger HI-Z - Eingang
gerasterter Gain Poti
+48V Phantomspeisung
praktisches 9,5“ Gehäuse
Externe 24 VAC Stromversorgung
Eingänge 1 x XLR, 1 x Klinke (unsymmetrisch)
Ausgang 1 x Klinke (symmetrisch)
Höhe: 1HE
Breite: 9,5“ (Rackmontage fähig)
Gewicht: 1.45 kg

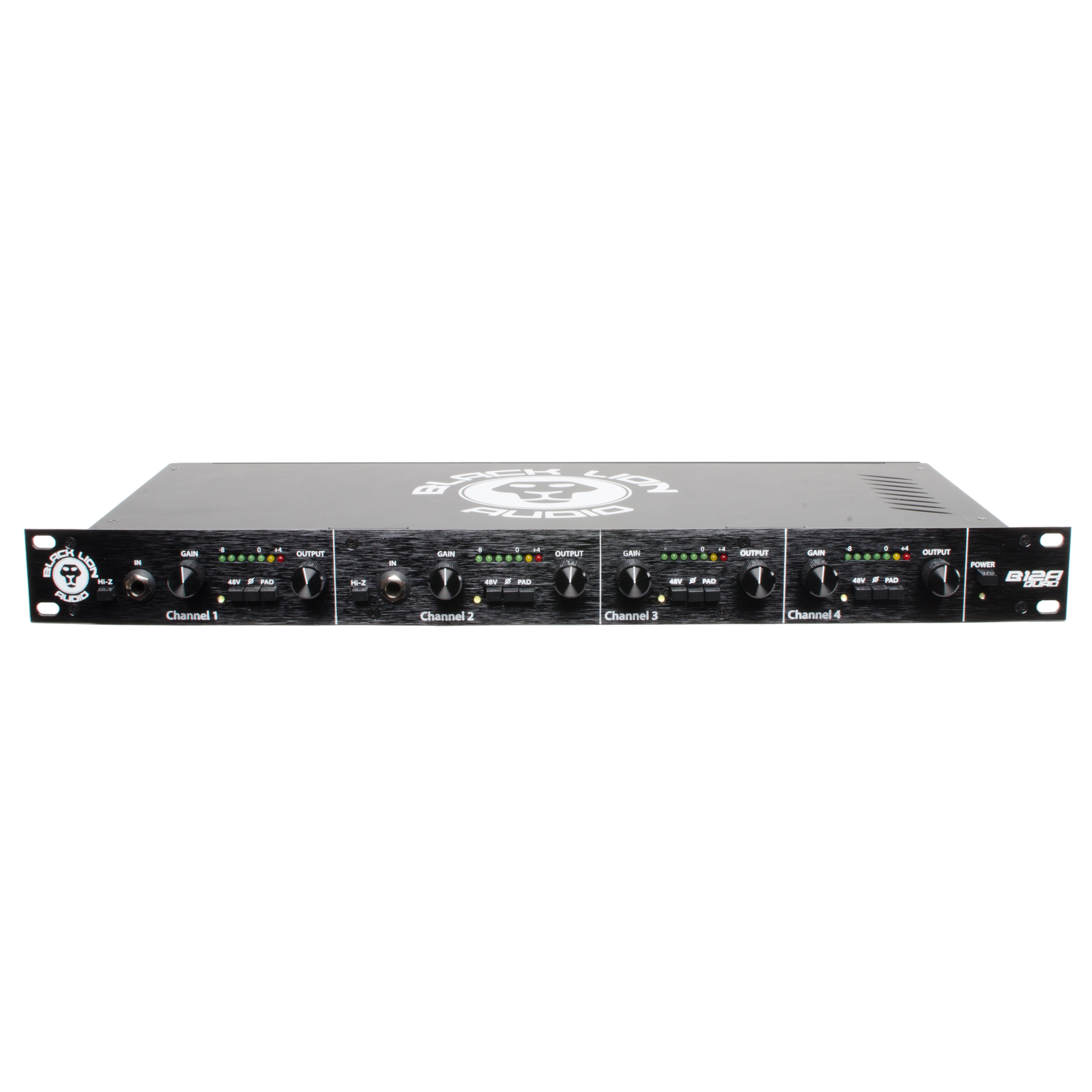

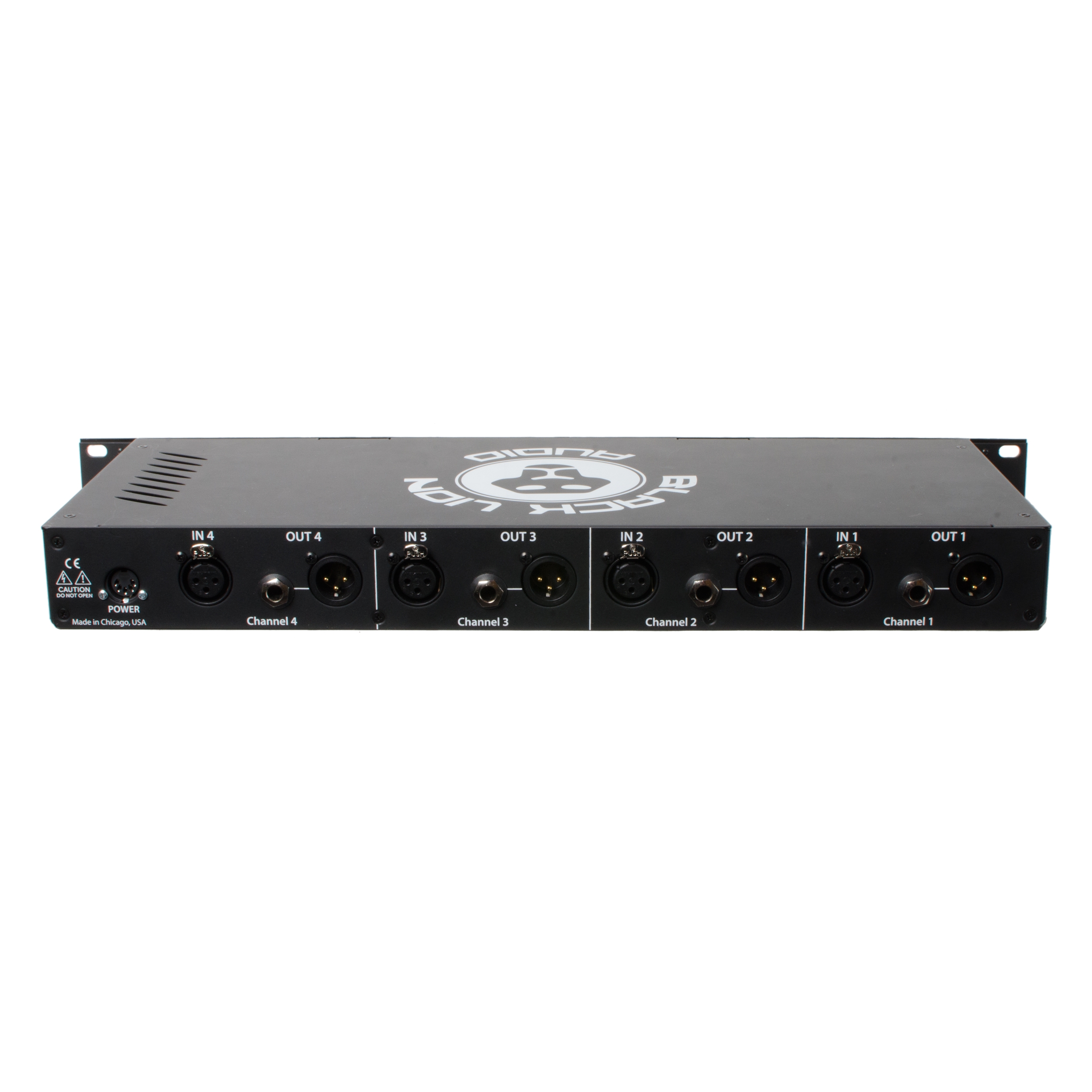

The B12A Quad is Black Lion Audio's latest rendition of 312A-style gain with 70dB of bang! Housing four channels of Rock 'n' Roll punch in a 1U chassis, it delivers modern flair with solid vintage tone at an unbeatable price! Each channel of the B12A Quad has the same delicious Cinemag input transformer found in the venerable B12A Mk2, but also sports Cinemag output transformers, two front panel D.I.'s, output metering on every channel, and XLR/TRS parallel outputs in back!
Da Black Lion Audio, mit dem beliebten Seventeen-Kompressor schon einen Volltreffer hatte, bringen Sie nun den beeindruckenden B172A mit F.E.T. Schaltung und tollem Design auf den Markt! Durch die Kombination der beiden getrennten Schaltkreise 76 und 2A wird ermöglicht, dass das Signal in einer beliebigen Reihenfolge weitergeleitet wird und so eine nützliche Kompressortechnik entsteht. Das große Ziel bei der Entwicklung des B172A war die Flexibilität. Der AB-BA Schalter am B172A ermöglicht eine schnelle interne Weiterleitung des Signals. Die beiden Kompressoren können auch völlig unabhängig voneinander verwendet werden, wenn die 3. Position (Link off) des AB-BA-Schalters verwendet wird. Jeder Schaltkreis verfügt auch über eine Stereoverbindung, sodass ein Paar B172A in Stereo verwendet werden kann.
1176 (Der Seventeen) & LA-2A-Komprimierung in einem 2-HE-Gehäuse
A/B oder B/A Einstellung auf der Frontplatte
Cinemag LA-2A Eingangstransformator
Ausgangstransformator mit Chicago Wicklung 1176 und LA-2A
Besondere Black Lion Audio T4B Element (das „T4BLA“)
Hochwertige Verarbeitung und Leistung Kondensatoren
Link-Funktion für Stereo-Betrieb
Ratio schaltbar 4:1, 8:1, 12:1, 20:1 (76er Sektion)
Output VU meter

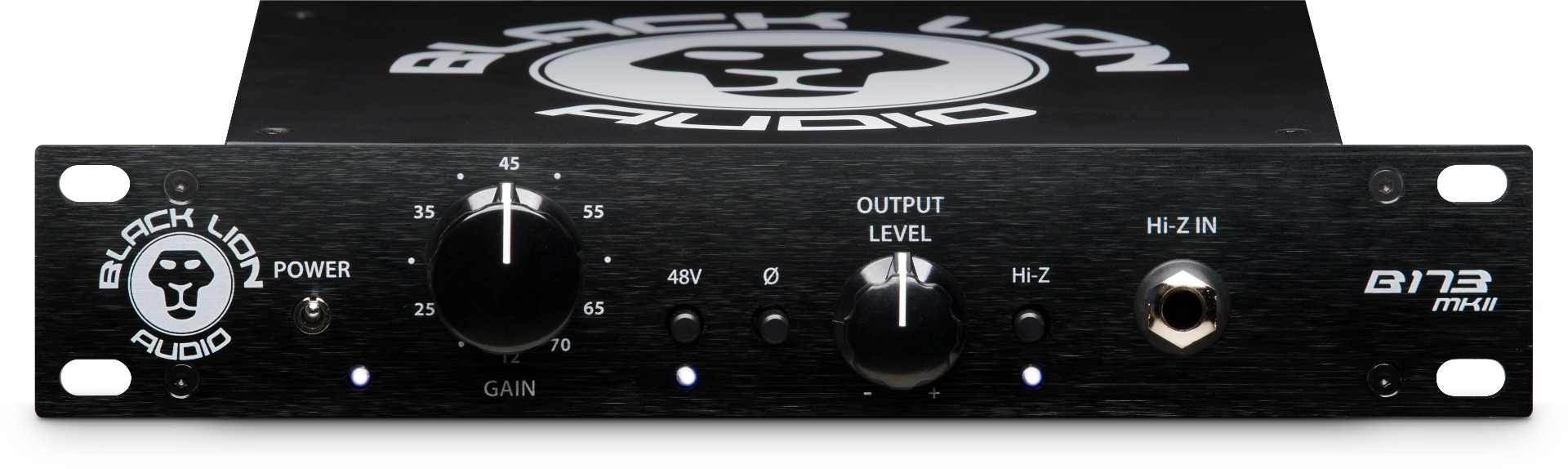

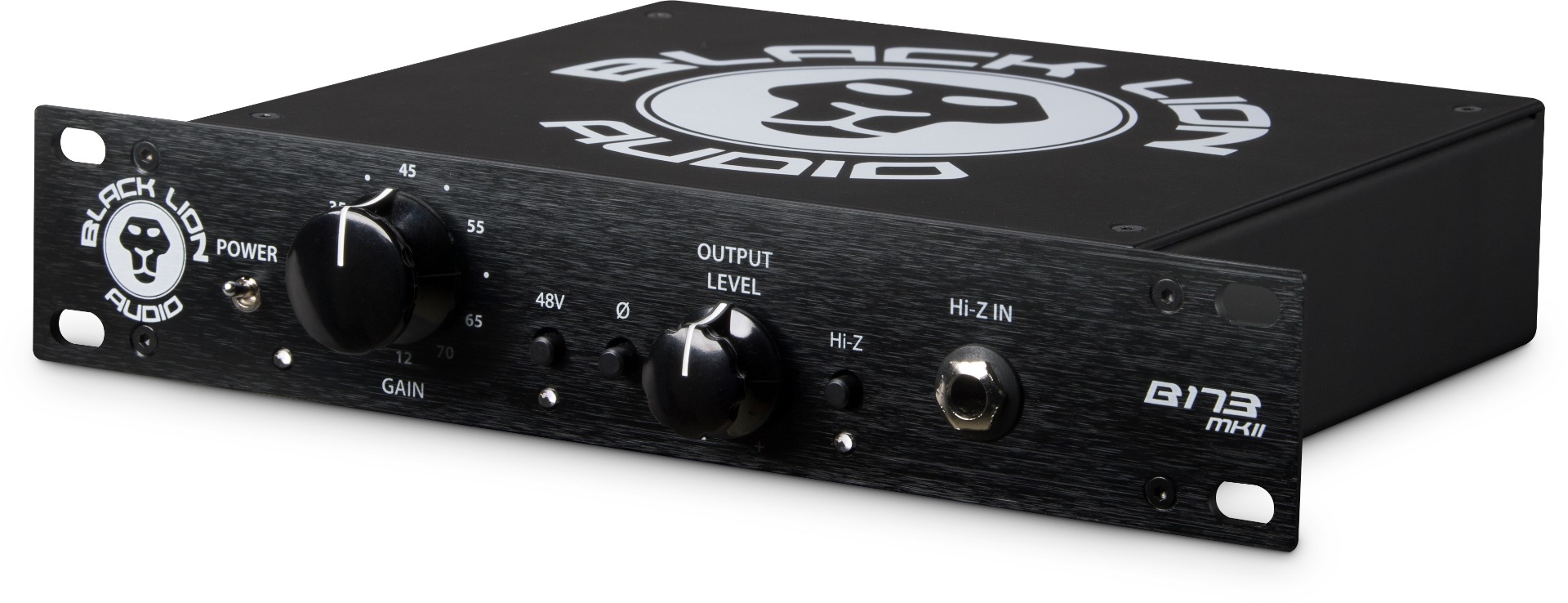

Like Black Lion Audio's B173 quad preamplifier, the circuit design of the single-channel B173 MKII is based on the classic circuitry, transporting the legendary fat, warm British sound into modern times. For an even cleaner and less distortion sound, the gain stage has been significantly redesigned. Two large-format controls for input and output levels allow a sensitive dosage of the sound coloration by the transformers, so that all sound variations from velvety elegant to rich and overtone-rich are immediately available. With the B173 MKII from Black Lion Audio, the classic sound that has made England's audio technology world-famous is available in a modern and compact form.
One channel Preamp
1073-british-style gain
Cinemag input and output transformers
Variable output attenuation for control over transformer saturation
Front panel HI-Z-Input.
Stepped input gain
48V phantom power
phase inverse controls
Convenient half-rack sizing for mixing-and-matching
VAC external supply
Inputs: 1 x XLR, 1 x ¼” TRS (unbalanced)
Output: ¼“ TRS (balanced)
height: 1U · width: 9,5“ (rackmountable)
weight: 1.4 k
Please give a warm welcome to all 70dB of Black Lion Audio's latest iteration of 1073-style gain, the B173 Quad! Rather than "just another clone," the B173 Quad seamlessly combines vintage character with modern sensibilities in a stylish 2U chassis with a feature set to satisfy the most demanding of audio engineers. A revamped gain stage and lower noise floor pave the way to a cleaner, lower distortion sound, while Cinemag input and output transformers keep things smooth and warm. Two front panel D.I.'s impart a harmonically rich tone to guitars, keyboards, and synthesizers, and stepped input gain and variable output attenuation allow for perfect control over transformer saturation. Metering on all 4 channels displays how hot your output signal is hitting the parallel TRS/XLR outputs, and an external power supply keeps noise out of your tracks!

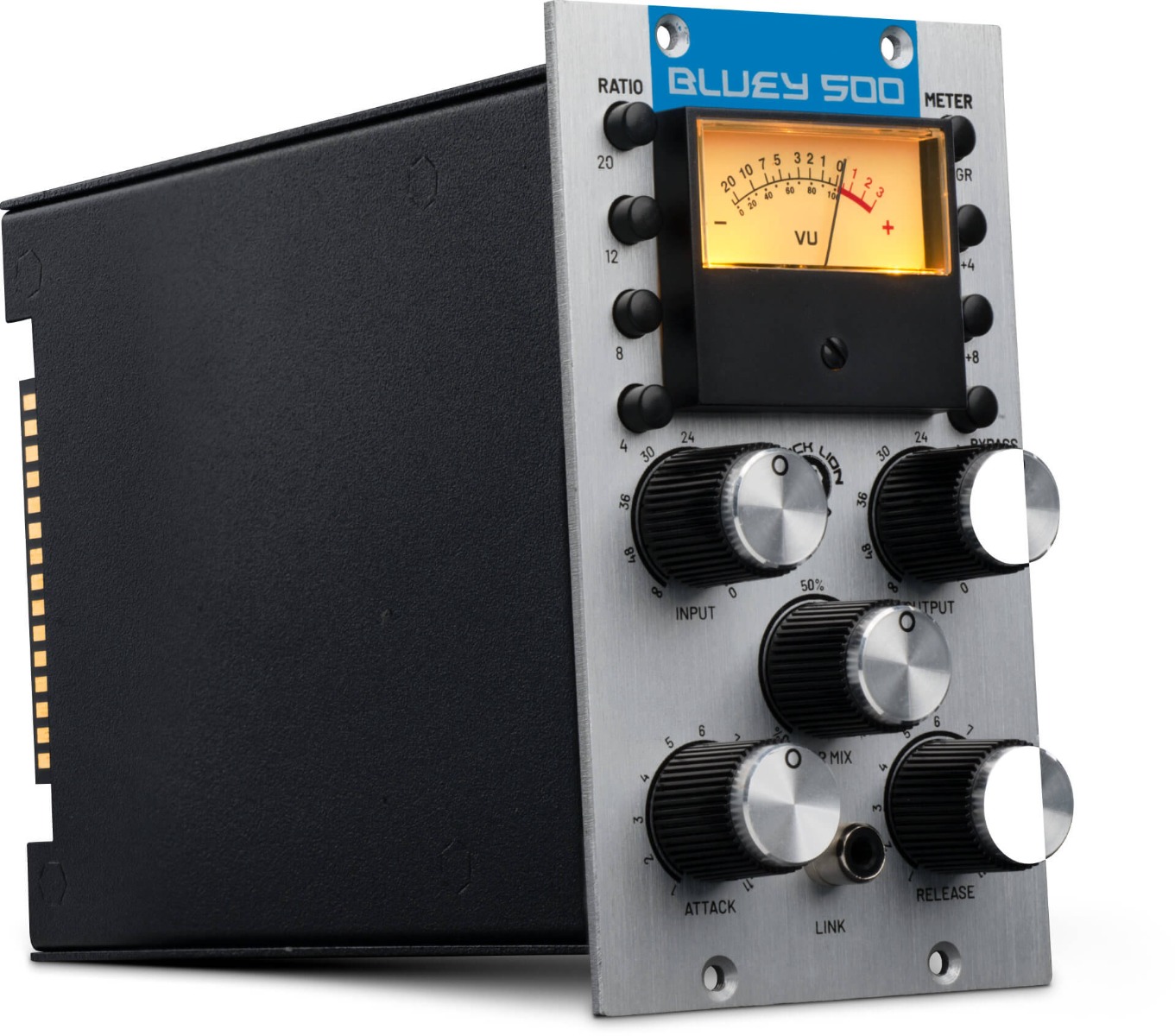

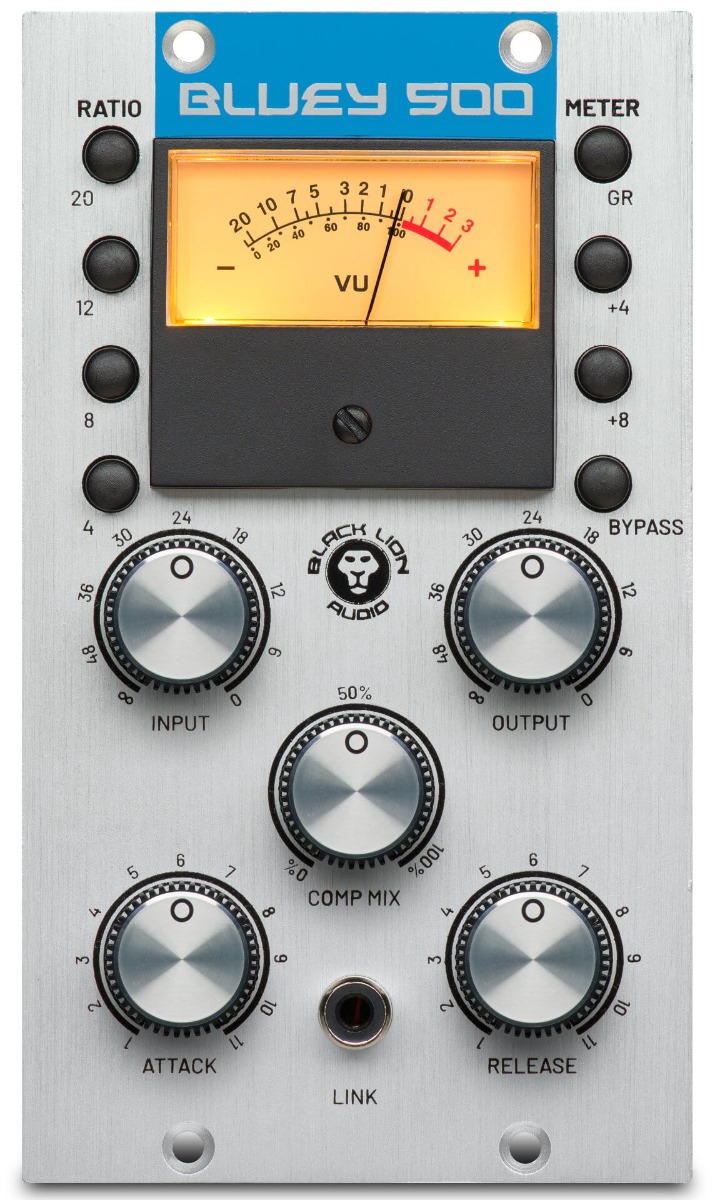

Black Lion Audio stellt den populären Bluey FET-Kompressor als 500er-Einheit vor. Das kompakte Modul verfügt über alle Funktionen der 19-Zoll-Hardware und macht damit den charakterstarken Klang des Bluey auch im mobilen Lunchbox-Format verfügbar. Auf der Basis des legendären Blue-Stripe-Kompressors, der für Chris Lord-Alge modifiziert wurde, ermöglicht der Bluey 500 effektive Dynamikkontrolle inklusive Mix-Regler. Gleichzeitig liefert er die beliebte Klangfärbung, die Lord-Alge vor allem für Vocals gerne einsetzt, einschließlich des berühmten All-Buttons-Mode für eine besonders intensive Verdichtung des Signals.
Der beliebte Black Lion Audio Bluey im 500er Format
Auf der Basis einer der Studiolegenden schlechthin
Inkl. des berühmten „All-Button-Mode“
Nachbau Chris Lord Alges’s Golden Unit fürs Vocal-Recording
2 Cinemag Transformer
Nachbau des original UTC Eingangs-Transformers
Nachbau des original Reichenbach Ausgangs-Transformers
Dry/Wet-Regler
Stereo-Link möglich
Lineare Stromversorgung
Präzise Kalibrierung
Attack stufenlos regelbar von 20uS bis 800uS
Release stufenlos regelbar von 50mS to 1200mS
Ratio schaltbar 4:1, 8:1, 12:1, 20:1 sowie jede Kombination
Handgetestet in den USA
Gewicht: 7,17 kg
Maße (L x B x H): 19,05 cm x 13,97 cm x 7,62 cm
The “Bluey” is a modified “Blue Stripe” compressor based off of the “golden” unit owned by Chris Lord-Alge. When certain components became unavailable, techs were forced to change the circuit, creating a one of a kind compressor that has been heard on countless hits.Any audio engineer worth their weight in gear will tell you about the special moments that occur on records by chance. We’re talking about the magic you can’t plan. It must occur organically, being comprised of sheer randomness or even flat out mistakes. For instance, the spontaneous banter from a vocalist in between takes that adds character to a track, or a radical new audio effect discovered through a simple routing mistake.The same good fortune sometimes shines upon a piece in the vintage gear world. Through decades of maintenance and repair, some units, like wine, get better with time. The scarcity of original parts leads technicians to diverge from the original design, creating an improved, one-of-a-kind, modified unit.Armed with an impeccable ear, decades of experience, and an abundance of coveted gear, legendary mix engineer, Chris Lord-Alge, was able to recognize one of his four 1176 Blue Stripe units as firmly sitting in this distinctive category. The particular unit, dubbed “Bluey,” has a special “mojo” to it that shines on vocal tracks like no other.Chris desired more channels of this golden unit, and reached out to the guys who know modifications best – the team at Black Lion Audio! Intrigued by Chris’ praise of the unit, head design engineer, Jesus Ortiz, boarded a plane from Chicago to LA to discover what gave this Blue Stripe its edge. He found a series of mods done to the unit over the years to keep it working that miraculously cumulated in a uniquely beast-like 1176! BLA analyzed the unit with pain-staking detail, and has, in conjunction with Chris Lorde-Alge, recreated the monster, now known as the new Black Lion Audio “Bluey!”
Features:
Fully discrete design
Through hole components
Polyester capacitors
Vintage inspired one-sided PCB layout
Cinemag remake of original UTC transformer
Wet/Dry mix feature
Linear power supply
Precise meter calibration

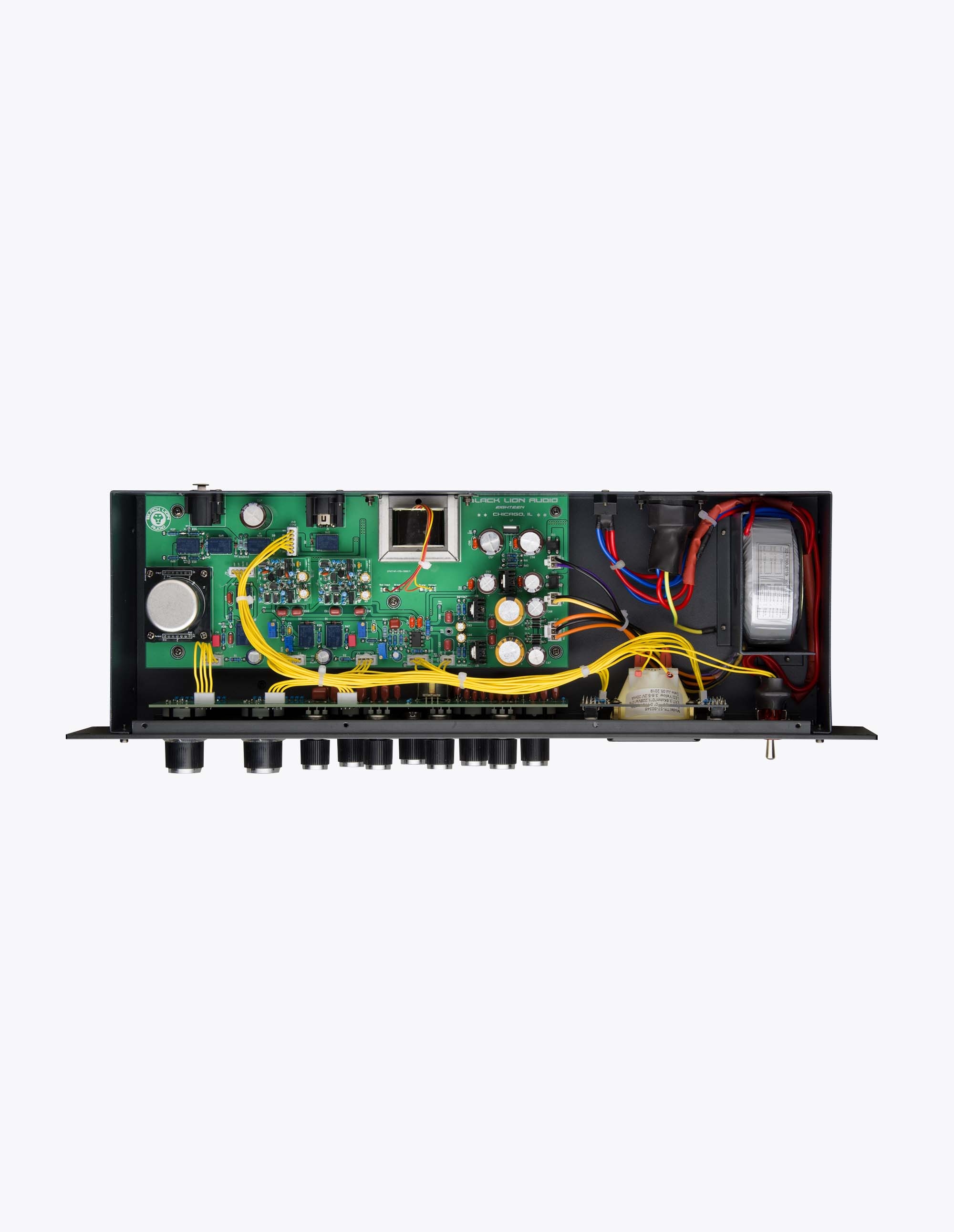

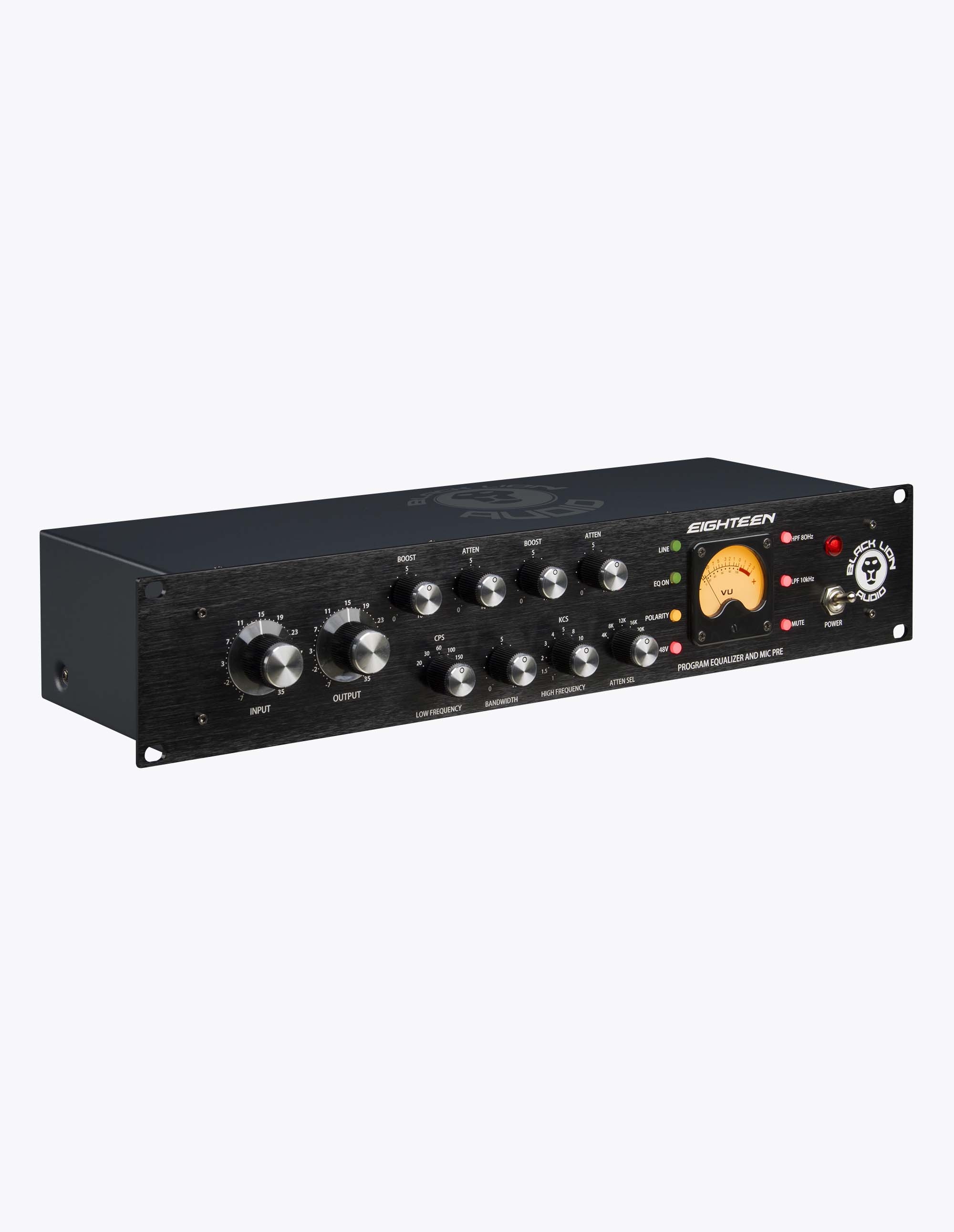

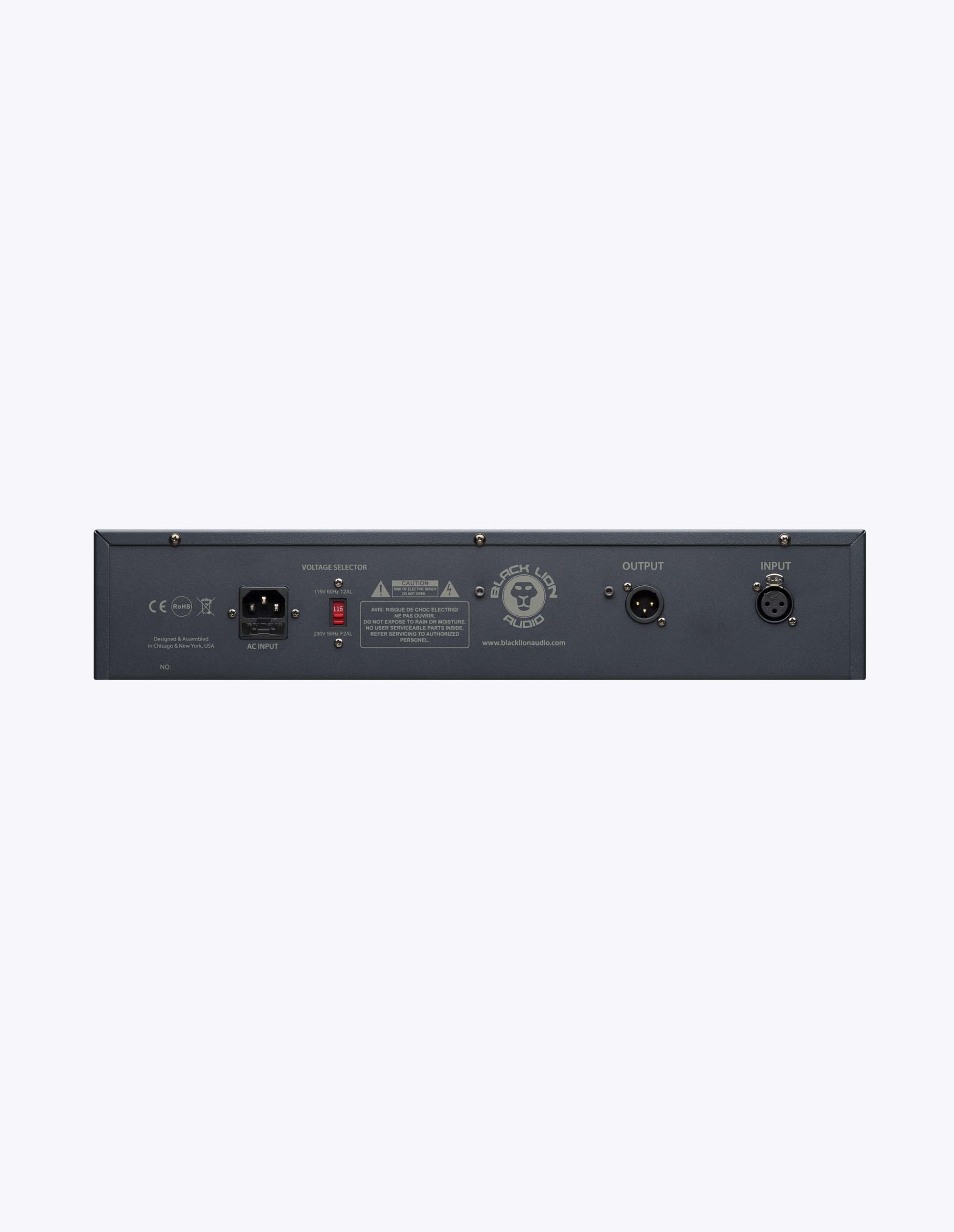

Black Lion Audio’s Eighteen starts with a vintage-inspired preamplifier — providing a creamy, yet punchy response. They topped that off with a passive induction-based program equalizer and output controls for pushing the analog stages to pure overdriven-bliss that’s still safe for your convertors and DAW.
Eighteen’s preamplifier circuit isn’t just another clone, but an homage built to pay proper tribute to some of the most classic designs ever made. That’s why Black Lion created the BLA1831: a customized, discrete op-amp created through an extensive period of component testing — creating great vintage tone, while still matching a noise floor that’s akin to modern equipment.
Eighteen packs an impressive, original passive inductor-based equalizer that you’re sure to love — featuring a custom Cinemag inductor made just for Eighteen! The results are amazing; a quiet, and ultra-flexible equalizer that packs all of the vibe of your favorite program-style EQ’s.
Eighteen’s features don’t stop there: it also features a custom-wound Cinemag transformer for the output, as well as output gain control for pushing the unit into pure overdriven-bliss. Black Lion Audio designed, engineered, assembles, and tests each unit by hand in the USA.
Introducing the Micro Clock mk2, a completely revolutionary design in external clocking from Black Lion Audio. The Micro Clock mk2 is a radical departure in design from its predecessor. It features ultra-low jitter third order crystal oscillators with a revolutionary patent-pending high current parallel drive circuit designed to increase the amount of desirable harmonics within the clock's spectral band. In addition to this, our proprietary noise reduction circuitry dramatically eliminates the unwanted switching harmonics normally found in digital signals. These are musically unrelated signals that create distortion and phase cancellation within the converted audio signal. Because of these technological advances, the Micro Clock mk2 is one of the best performing external word clocks within the pro audio market today.
When we introduced the Micro Clock mk2 we didn't anticipate the amount of demand and controversy that managed to accompany it. External clocking is certainly a hot button issue. Some folks maintain that there's no basis for it; that it's a sort of modern "emperor's new clothes." The reasoning behind this is that the device being clocked externally will simply filter the incoming clock signal through its phase lock loop, thereby eliminating any sort of benefit associated with the superior clock. In addition, the simple act of accepting the incoming signal and creating a new signal that's in phase will add some jitter.
The biggest problem with this theory is that we know nothing about the PLL filter in question; it's completely hypothetical. Many PLL's in pro audio are designed to filter out unwanted signals that are outside of the desired bandwidth, although some are configured to filter out unwanted harmonics that lie within the signal's frequency band. It's incredibly rare to find one that does both at the same time. In the case of the Micro Clock mk2, there is very little undesirable in-band or out of band content (below 10 picoseconds using a Delta Sigma average). There is, however, an abundance of desirable harmonically related in-band spectral content; more so than the average internal clock. No PLL filter is designed to remove these desirable harmonics; they're busy trying to remove the unwanted stuff. Simply put, the Micro Clock mk2 will not only provide audible improvement to your conversion process, but it will do it as well as or better than any other external clock on the market today.SPECIFICATIONS
Output: 3 galvanic-isolated BNC with fixed 75 ohm terminations @ 6 volts peak to peak
Power: 9-12 volts DC
Sampling rates: six selectable rates, 44.1 kHz-192 kHz
Jitter: maximum 1 pico second of intrinsic jitter, less than 10 picoseconds of accumulated jitter measured using a delta sigma averaging method.
The Micro Clock mk2 is simple and probably even boring looking by most standards. It's housed in a rugged yet basic 3 inch by 4 inch chassis that provides optimum RF shielding. It has no lights, no frequency display, and none of the usual visual candy that your friends might envy, but that's because those items create unwanted noise that affect the signal. For a modest black box, it does its job incredibly well and at a price that's unheard of for this level of performance!
The power supply is 12 volts DC using a wall wart that's capable of accepting both 120 and 240 volts AC. It features six selectable output frequencies from 44.1 kHz on up to 192 kHz. Output level is approximately 4 volts peak to peak. Jitter at the crystal oscillator is approximately 1 picosecond RMS, and it's just under 10 picoseconds RMS at the output. Both of these figures are obtained using a Delta Sigma averaging method. The Micro Clock mk2 is compatible with all modern digital devices that have 75 ohm BNC word clock input.
Features
Ultra-low jitter, harmonically-enhanced word clock signal generation
Dimmable frequency display
8 selectable sample rates (44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, and 384kHz)
6 BNC outputs with dedicated output drivers for maximum isolation
RCA S/PDIF output
Optical S/PDIF output
AES output
1U removable rack ears
The Micro Clock MkIII is a significant redesign of its predecessor, the Micro Clock MkII. Core technological improvements include lower-jitter crystal oscillators, higher-quality galvanic transformer isolation in the signal path, dedicated output drivers with better isolation, higher-precision signal division, and much heavier noise filtration throughout the circuit. All of this results in a more robust, lower-jitter clock signal than the Micro Clock MkII, with even more desirable harmonics in the clock’s spectral band that impart an undeniable musical quality to the conversion process. The feature set has expanded to include an LED frequency display, six BNC outputs capable of up to 384kHz, AES and RCA S/PDIF outputs capable of up to 192kHz, an optical S/PDIF output capable of up to 96kHz, and removable 1U rack ears.
Product Description
The Micro Clock MkIII is the culmination of almost 10 years of research involving jitter- reducing, harmonic-enhancing design techniques not found in any other master word clocks on the market. It not only can sync all of your digital audio gear together, but can significantly improve the sound quality as well. It may be the most significant single upgrade you can make to your digital audio setup. Get ready to hear what you’ve been missing!
We spent the better part of a year field-testing the Micro Clock MkIII XB prior to its release, and got a lot of positive feedback on the impact it made in a wide variety of setups. Its small form factor and its ability to drive up to 1,000 feet of coaxial cable make it not only the perfect solution for improving the conversion quality of an audio interface, but also for re-clocking digital mixing consoles at live shows or houses of worship, and as the master word clock in large post-production or broadcast facilities. It can easily sync all of your digital gear together, even if it’s located in different rooms, or different buildings!
Black Lion Audio präsentiert mit der PBR Serie drei neue Patchbays im Rackformat. Unter anderem die PBR TRS mit 48 symmetrischen Klinkenanschlüssen. Zum Erhalt der höchsten Klangqualität in der Signalkette wurden Bauteile und Verarbeitung klassischer Patchbays weitestmöglich optimiert. Mit ihrem praktischen und eleganten Design aus schwarz eloxierter Aluminium-Frontplatte und vergoldeten Anschlussbuchsen fügen sich die Patchbays der PBR Serie hervorragend in jedes anspruchsvolle Studio ein.
Funktionen:
Patchbay mit 48 symmetrischen Klinkenanschlüssen
alle Vorzüge klassischer Patchbays bei hochwertiger Verarbeitung und Klangqualität
Optimierung von Bauteilen und Verarbeitung herkömmlicher Patchbays
Umschaltung der Normalisierungsmodi auf der Rückseite per Knopfdruck
Alle Anschlüsse vergoldet
Frontpanel aus schwarz-eloxierten Aluminium
Vielseitiges Routing mit herausragender Klangqualität
Gewicht: 1,4 kg
Maße (L x B x H): 53 cm x 10 cm x 5 cm
Black Lion Audio präsentiert mit der PBR Serie drei neue Patchbays im Rackformat. Unter anderem die PBR TRS-BT mit 46 symmetrischen Klinkenanschlüssen und einem Bluetooth®-Modul. Zum Erhalt der höchsten Klangqualität in der Signalkette wurden Bauteile und Verarbeitung klassischer Patchbays weitestmöglich optimiert. Mit ihrem praktischen und eleganten Design aus schwarz eloxierter Aluminium-Frontplatte und vergoldeten Anschlussbuchsen fügen sich die Patchbays der PBR Serie hervorragend in jedes anspruchsvolle Studio ein.
Funktionen:
Patchbay mit 46 symmetrischen Klinkenanschlüssen
Bluetooth®-Kompatibilität für drahtlose Übertragung in die Signalkette
Bluetooth®-Modul ausgestattet mit besten Codecs für verlust- und kabelfreie Audio-Übertragung
alle Vorzüge klassischer Patchbays bei hochwertiger Verarbeitung und Klangqualität
Einbindung von Quellen und Klangerzeugern mühelos von Smartphones und Tablets in Studio-Umgebung
Optimierung von Bauteilen und Verarbeitung herkömmlicher Patchbays
Umschaltung der Normalisierungsmodi auf der Rückseite per Knopfdruck
Alle Anschlüsse vergoldet
Frontpanel aus schwarz-eloxierten Aluminium
Vielseitiges Routing mit herausragender Klangqualität
Gewicht: 1,4 kg
Maße (L x B x H): 53 cm x 10 cm x 5 cm
Black Lion Audio stellt mit der PBR TT eine 4,4-mm-Klinkenstecker-Patchbay für professionelle Ansprüche vor. Die 96 Patch-Punkte im TT-Phone- beziehungsweise Bantam-Format lassen sich pro Paar in ihrer Normalisierung konfigurieren, um verschiedensten Anwendungen individuell gerecht zu werden. Auf der Rückseite wird die Studio-Peripherie über DB-25-Stecker angebunden. Die solide Konstruktion und die vergoldeten Kontakte machen die PBR TT zu einem besonders langlebigen Studio-Werkzeug und zur idealen Möglichkeit, den Signalfluss im eigenen Studio flexibel zu verwalten.
Funktionen:
96 Punkt TT-Phone Patchbay in einer Höheneinheit
4,4-mm-Klinkenstecker
Für jedes Buchsenpaar lässt sich mit einem Schalter auf der Oberseite die Normalisierung umstellen
Zur Verfügung stehen: isoliert, vollnormalisiert und halbnormalisiert
Komfortable Signaldistribution
Anschluss über 12 DB-25-Anschlüsse
Keine Lötkenntnisse erforderlich
D-Sub Buchsen sind an einer Stahlplatte montiert
Sehr solide Bauweise - Verstärktes Stahlgehäuse & massive Frontplatte
Alle Kontakte sind goldbeschichtet – Zum Erhalt der Signalintegrität über eine lange Zeit hinweg
Gewicht: 3 kg
Maße (L x B x H): 13,34 cm x 48,26 cm x 4,45 cm
Black Lion Audio präsentiert mit der PBR Serie drei neue Patchbays im Rackformat. Unter anderem die PBR XLR mit zwölf männlichen und vier weiblichen XLR-Anschlüssen. Zum Erhalt der höchsten Klangqualität in der Signalkette wurden Bauteile und Verarbeitung klassischer Patchbays weitestmöglich optimiert. Mit ihrem praktischen und eleganten Design aus schwarz eloxierter Aluminium-Frontplatte und vergoldeten Anschlussbuchsen fügen sich die Patchbays der PBR Serie hervorragend in jedes anspruchsvolle Studio ein.
Funktionen:
Patchbay mit 12 männlichen und 4 weiblichen XLR-Anschlüssen
alle Vorzüge klassischer Patchbays bei hochwertiger Verarbeitung und Klangqualität
Optimierung von Bauteilen und Verarbeitung herkömmlicher Patchbays
Umschaltung der Normalisierungsmodi auf der Rückseite per Knopfdruck
Alle Anschlüsse vergoldet
Frontpanel aus schwarz-eloxierten Aluminium
Vielseitiges Routing mit herausragender Klangqualität
Gewicht: 1,4 kg
Maße (L x B x H): 53 cm x 10 cm x 5 cm
Der PG-1 Type F ist ein professioneller Power Conditioner mit umfangreicher Ausstattung. Er beinhaltet eine Bank mit acht schaltbaren, gefilterten und Überspannungsgeschützen Ausgängen. Zwei gefilterte Ausgänge sowie ein Anschluss für eine 3 Pin XLR-Lampe befinden sich auf der Vorderseite, weitere 6 Ausgänge, eine Erdungsklemme und der Netzanschluss auf der Rückseite. Das Display und weitere LEDs auf der Front geben ein konstantes optisches Feedback über die Eingangsspannung sowie den Zustand von Erdung, Polarität, Filterung von Störsignalen, Wechselspannung und Überspannungsschutz. Die Ausgänge sind für digitale, analoge oder besonders „stromhungrige“ Geräte individuell optimiert. Ein zweistufiges System zum sequenzierten Hoch- und Herunterfahren wurde ebenfalls implementiert. Um ungesunde Pop Geräusche beim Ein- oder Ausschalten von Lautsprechern und Verstärkern zu vermindern sind die „High Current“ Ausgänge leicht verzögert und werden im System zuletzt ein und ausgeschaltet.
Multi-Stage Black Lion Audio Filterung
Panasonic & Wima Kondensatoren
Sequenzierte Ein- und Ausschalt-Modi
Spannungsenergie Einstufung: 2775 Joule
EU Schuko Type F Kombinationsbuchsen
Acht Einzelausgänge
Spannung: 230 V AC – 10A max
Akustische Warnsignale
Kompatibilität: Wechselstrom angetrieben, 230 V AC
Maße: 438mm x 44mm x 250mm
Gewicht: 5,7 kg
Mit dem PG-2 Type F präsentiert Black Lion Audio einen hochwertigen Power Conditioner im Rack-Format mit einer Vielzahl praktischer Funktionen. Die PG-99-Filtertechnologie ermöglicht dank erlesenen Panasonic- und Wima-Kondendatoren eine annähernd 100-prozentige Rauschfilterung. Damit arbeitet der PG-2 Type F auf dem Level deutlich teurerer Power Conditioner im Rack-Format. Der potente Überspannungsschutz mit einer Absorptionsleistung von 2775 Joule bewahrt die Studio-Hardware zuverlässig vor schädlichen Stromspitzen. Bis zu 14 Geräte können mit Strom versorgt werden. Dabei verhindert die eingebaute Zeitverzögerung unerwünschte "Knackgeräusche" zum Schutz von Lautsprechern und Verstärkern. Ausgestattet mit Statusanzeige und Warnfunktionen ist der PG-2 Type F die professionelle Stromverteilung, auf die sich Studiobetreiber verlassen können.
Umfangreicher Powerconditioner im Rackformat mit 14 Ausgängen
Ausgestattet mit PG-99 Filtertechnologie
Panasonic- & Wima-Kondensatoren wurden verbaut
Reduziert den Rauschpegel um bis zu 99,7%
Optimiert das Ansprechverhalten im Hochtonbereich
Entfernung von Brummschleifen
Energieabsorptionsleistung von 2775 Joule
Verfügt über 12 Ausgänge, die in 4 Gruppen zusammengefasst sind
2 x Digital Audio, 1 x Ananlog Audio, 1 x High Current
Die analogen sowie Hochstromausgänge sind zeitverzögert
Kein Anschaltimpuls auf den Monitoren mehr
An der Frontplatte zwei weitere Ausgänge und eine USB-A-Ladebuchse
Anschluss für XLR-Schwanenhalslampe an Vorder- und Rückseite
Spannungs- & Stromstärkemessgerät integriert
LED-Statusanzeige für die Erdung, Polarität, Rauschfilterung, abnormale Spannung und Überspannungsschutz
Audioalarm für ungesicherte Spannung
Spannung: 120VAC 15A max
AC Haupteingang: Edison 15A Plug
Gewicht: 6,8 kg
Maße (L x B x H): 250mm x 438mm x 88mm
Beim Revolution 2x2 von Black Lion Audio ist der Name Programm: Das kompakte Interface bietet Features und eine Qualität, die sonst gar nicht oder nur in größeren Wandlersystemen zu haben sind. Berühmt geworden durch Modifikationen von Mikrofonvorverstärkern, Digital-Analogwandlern und Signalprozessoren konnte der Hersteller aus Chicago mit seinen eigenen Produkten Top-Studios auf der ganzen Welt begeistern. Mit dem Revolution 2x2 stellt Black Lion Audio erstmals ein USB-Interface vor, in dessen Entwicklung all diese Erfahrungen eingeflossen sind. Allerbeste Bauteile, konsequente Entkopplung des Analogteils von AD/DA-Wandlern, die hauseigene hochpräzise Macro-MMC Clock und nicht zuletzt die integrierte PG-I Stromreinigung machen das Revolution 2x2 zu einem Interface, das in Bezug auf Klangintegrität und Nebengeräuschfreiheit bis weit über seine Klasse hinaus Maßstäbe setzt. Das mitgelieferte, umfangreiche Softwarepaket sorgt dafür, dass der Benutzer sofort loslegen kann – mit international konkurrenzfähigen Produktionen direkt aus dem heimischen Wohnzimmer.
Technische Daten
Bus-Powered Stromversorgung
USB-C Verbindung zum Computer
2 Eingänge & 2 Ausgänge
A/D mit bis zu 24bit/192kHz
Zwei Mikrofon- und Instrumentenvorverstärker/Hi-Z
48V Phantomspeisung
Eingänge
Zwei XLR-1/4‘ Kombobuchsen
Ausgänge
Zwei 1/4' Klinkenbuchsen
Digitale Eingänge
1 x Coaxial SPDIF
Digitale Ausgänge
1 x Coaxial SPDIF
Kopfhörerausgang
1 x 1/4' Klinkebuchse
Breite
25,4 cm
Höhe
5 cm
Tiefe
22,9 cm
Gewicht
1,4 kg
Lieferumfang
Revolution 2x2
USB-C Kabel
USB-C auf USB-A Kabel
Beim Revolution 2x2 von Black Lion Audio ist der Name Programm: Das kompakte Interface bietet Features und eine Qualität, die sonst gar nicht oder nur in größeren Wandlersystemen zu haben sind. Berühmt geworden durch Modifikationen von Mikrofonvorverstärkern, Digital-Analogwandlern und Signalprozessoren konnte der Hersteller aus Chicago mit seinen eigenen Produkten Top-Studios auf der ganzen Welt begeistern. Mit dem Revolution 2x2 stellt Black Lion Audio erstmals ein USB-Interface vor, in dessen Entwicklung all diese Erfahrungen eingeflossen sind. Allerbeste Bauteile, konsequente Entkopplung des Analogteils von AD/DA-Wandlern, die hauseigene hochpräzise Macro-MMC Clock und nicht zuletzt die integrierte PG-I Stromreinigung machen das Revolution 2x2 zu einem Interface, das in Bezug auf Klangintegrität und Nebengeräuschfreiheit bis weit über seine Klasse hinaus Maßstäbe setzt. Das mitgelieferte, umfangreiche Softwarepaket sorgt dafür, dass der Benutzer sofort loslegen kann – mit international konkurrenzfähigen Produktionen direkt aus dem heimischen Wohnzimmer.
Technische Daten
Bus-Powered Stromversorgung
USB-C Verbindung zum Computer
2 Eingänge & 2 Ausgänge
A/D mit bis zu 24bit/192kHz
Zwei Mikrofon- und Instrumentenvorverstärker/Hi-Z
48V Phantomspeisung
Eingänge
Zwei XLR-1/4‘ Kombobuchsen
Ausgänge
Zwei 1/4' Klinkenbuchsen
Digitale Eingänge
1 x Coaxial SPDIF
Digitale Ausgänge
1 x Coaxial SPDIF
Kopfhörerausgang
1 x 1/4' Klinkebuchse
Breite
25,4 cm
Höhe
5 cm
Tiefe
22,9 cm
Gewicht
1,4 kg
Lieferumfang
Revolution 2x2
USB-C Kabel
USB-C auf USB-A Kabel

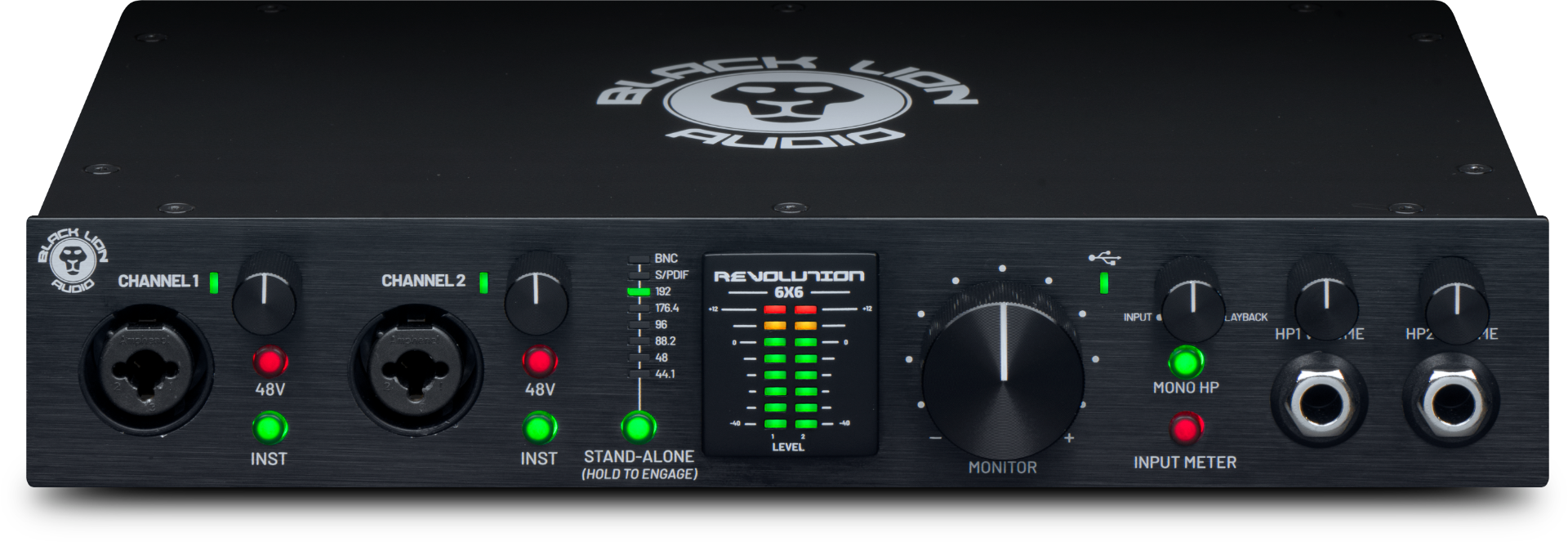

With the Revolution 6x6, Black Lion Audio presents a universally applicable USB audio interface with first-class audio quality. In addition to the six different inputs and outputs, the device has a variety of practical functions. The innovative USB OTG (On-The-Go) connectivity lets you send and receive two audio channels directly from your tablet or smartphone. Furthermore, the interface can be used independently as an excellent-sounding DAC. Two powerful and crystal-clear headphone outputs can be individually adjusted to suit different needs. In addition to high-quality analog components from Vishay, Nichicon, Wima, and high-end ICs, the patented Macro MMC clock ensures the usual Black Lion sound quality. Also included is the comprehensive software package with Presonus Studio One Artist, iZotope Elements Suite, BrainWorx BX Digital, and Lindell 6X500.
Features:
High-quality, 6-channel audio interface with word clock and OTG function
Stand-Alone DAC mode
Innovative connectivity with laptop and smartphone via USB-OTG
To use the USB OTG port correctly, please use an OTG cable or an OTG adapter (not included)
Precise macro MMC clock (BNC in/out)
2 stereo headphone outputs on 6.3 mm stereo jack with separate controls
Direct monitoring with mix control and mono switch
AD/DA conversion with up to 24 bit / 192 kHz
High-quality components from Vishay, Nichicon, Wima and Melf
USB-C port
Inputs:2 x XLR/jack combo socket, 2 x USB OTG, 2 x S/PDIF
Outputs: 2 x balanced line on 6.3 mm TRS jack, 2 x USB OTG, 2 x S/PDIF
System requirements: from Win10 (64 bit), from Mac OSX 10.13
Includes extensive software package (download): Presonus Studio One Artist, iZotope Elements Suite, BrainWorx BX Digital, Lindell 6X500
Dimensions (HxLxW) in cm: 10,16 x 25,4 x 22,86
Weight: 1,75 kg
Expand your studio with the Black Lion Revolution EXP. With the high-quality AD/DA converter you get 16 analog TRS connections (8-in, 8-out), as well as 16 channels of ADAT I/O. The superior Macro-MMC clocking technology ensures extraordinary clarity up to 192 kHz. To deliver the well known high quality Black Lion Audio sound the Revolution EXP’s road-worthy metal construction houses boutique components from Nichicon, Vishay and Wima . Its bright, eight-stage metering of every Input and Output makes for quick, accurate, at-a-glance level checks.
Features:
High-quality, 8x8 AD/DA Converter and Word Clock
Add more I/O to your ADAT-compatible interface
AD/DA conversion up to 24-bit/192kHz
Ultra-low jitter Macro MMC word clocking
Sync over BNC or ADAT
16 analog TRS connections (8-in, 8-out) with -10 dB pads on Inputs
16 ADAT digital connections (8-in, 8-out
Accurate metering of all inputs and outputs
Boutique components from Nichicon, Vishay and Wima
Supports 44.1, 48, 88.2, 96, 176.4, 192 kHz sample rates
External power supply
Dimensions (LxBxH - cm): 58,4 x 26,9 x 9,4
Weight: 3,5 kg
949,00 €*
Diese Website verwendet Cookies, um eine bestmögliche Erfahrung bieten zu können. Mehr Informationen ...
