The latest addition to the Neve outboard range, the 1073DPA provides two of the world famous Class A Neve 1073 microphone pre-amplifiers. This classic design is the consummate mic pre for recording vocals, guitars and acoustic instruments of all descriptions. The sought after Neve Sound is now available in a cost effective 1U box.Classic Neve 1073 Mic Pre circuitaffordable classic Neve soundHand crafted by Nevesingle U rack mount unitphase reverse switchhigh quality input selector switch Für weitere Informationen, besuchen Sie bitte die Homepage zu diesem Produkt.
AMS Neve 1073 DPDTwo Legendary 1073 Mic Preamps with 192kHz Digital OutputThe 1073DPD combines two of our world-famous Class A Neve 1073 microphone preamplifiers with flexible 192kHz digital output capabilities, for modern recording environments – all in a single rackspace. This classic design is the consummate mic pre for capturing vocals and musical instruments, with the added convenience of direct output to hard disk recorders or computers, thanks to the high-quality Neve-designed analogue-to-digital converters.For those who don’t already know its legacy, the big, punchy sound of the mic 1073 preamp complements any musical genre, from rock to pop, hip-hop to rap, thrash to classical. Its lush sound with classic Neve signature makes it the consummate mic pre for recording vocals, guitars, and all acoustic instruments.With the 1073DPD, two Neve 1073 mic preamplifiers are complemented by superb Neve-designed analogue-to-digital converters that can capture a performance in any required format. In addition to Neve's famous Class A analogue, outputs are a series of digital options, including all standard PCM sampling rates up to 192kHz, selectable via convenient front-panel controls. A unique feature is the Neve DSD (Direct Stream Digital) output, providing unsurpassed quality beyond PCM technology.Despite its power, the 1073DPD is remarkably simple to operate. Two rear-panel Mic inputs and Line inputs feed dual Class A gain stages, with adjustable Gain control and selectable 48V available on the Mic inputs. Class A analogue outputs in XLR format are also found on the rear panel, controlled via adjustable front-panel ±10dB Trim controls. Analogue insert points are provided ahead of the A/D converters, ensure the classic Neve sound is retained.The combination of legendary analogue circuitry and superior digital quality makes the 1073DPD the obvious choice as a front-end for recording to digital workstations.Features: Two legendary 1073 microphone preamps in a convenient 1U rackmount design Superior Neve-designed analogue-to-digital 24-bit converters 192Khz operation with DSD conversion, selectable via front-panel controls Dedicated input Gain controls and output Trim controls on both channels +48V Phantom Power and Phase Reverse switch High quality Input Selector switch Neve designed transformers for inimitable Neve sound Hand-crafted and hand-wired by Neve in Burnley, UK
Launched in 1970, the Neve 1073 Classic soon became the first choice mic preamp for leading producers and artists. Found on some of the most famous recordings of the past 40 years, the big, punchy sound of the 1073 complements any musical genre – from rock to rap to classical. The quality is legendary. Designed and built in England, the modern-day 1073DPX is produced to the exact specifications of the original with matched components to ensure the sound remains true.
The 1073DPX has two channels of Neve 1073 Class A design microphone preamplifiers, each with 3-band EQ (fixed HF plus two switchable bands with cut/boost capability) and high pass filter, adding warmth and depth to recordings, bringing out subtle ambience, maintaining spatial positioning, and capturing a more precise image – embodying, think many engineers and producers, the essence of the genuine Neve sound.
Building on the 1073 classic module features, the 1073DPX introduces extra functionality with integrated DI input, phantom power, selectable Insert feature, level meters, selectable headphone monitoring and I/O connectors on each channel for easy and direct connection of microphones and instruments. The 19” rack-mount 2U unit includes an external multi-voltage PSU
2 independent, genuine Neve 1073 transformer-coupled microphone preamplier / EQ circuits, in a single 2U 19" rack mount enclosure
Exclusive Neve Marinair™ transformers used on each input and output stage.
Convenient connections for Mic, Line & DI inputs on front of unit, with switchable mic/line input connections on the rear of the unit
Switchable +48v Phantom Power, Hi/Lo impedence, -20dB pad and DI ground lift on the input stage
Switchable Phase, and EQ in/out
Insert send and return loop feature allows external equipment to be connected easily to the 1073DPX audio chain, such as mono/stereo limiter/compressors;
Pre-EQ insert send/return - a line level send is available from the mic-preamp output stage and a return just before the EQ stage
Post-EQ insert send/return - a line level send is available from the post-EQ stage and a return just before the main output stage
Independent channel output level controls
7-stage LED signal level meters for each channel - can show mic/line/DI input-stage level, EQ-stage level or output-stage level up to +24dB
Headphone output with adjustable volume control, can listen to channel 1, channel 2 or both channels combined
External multi-voltage PSU

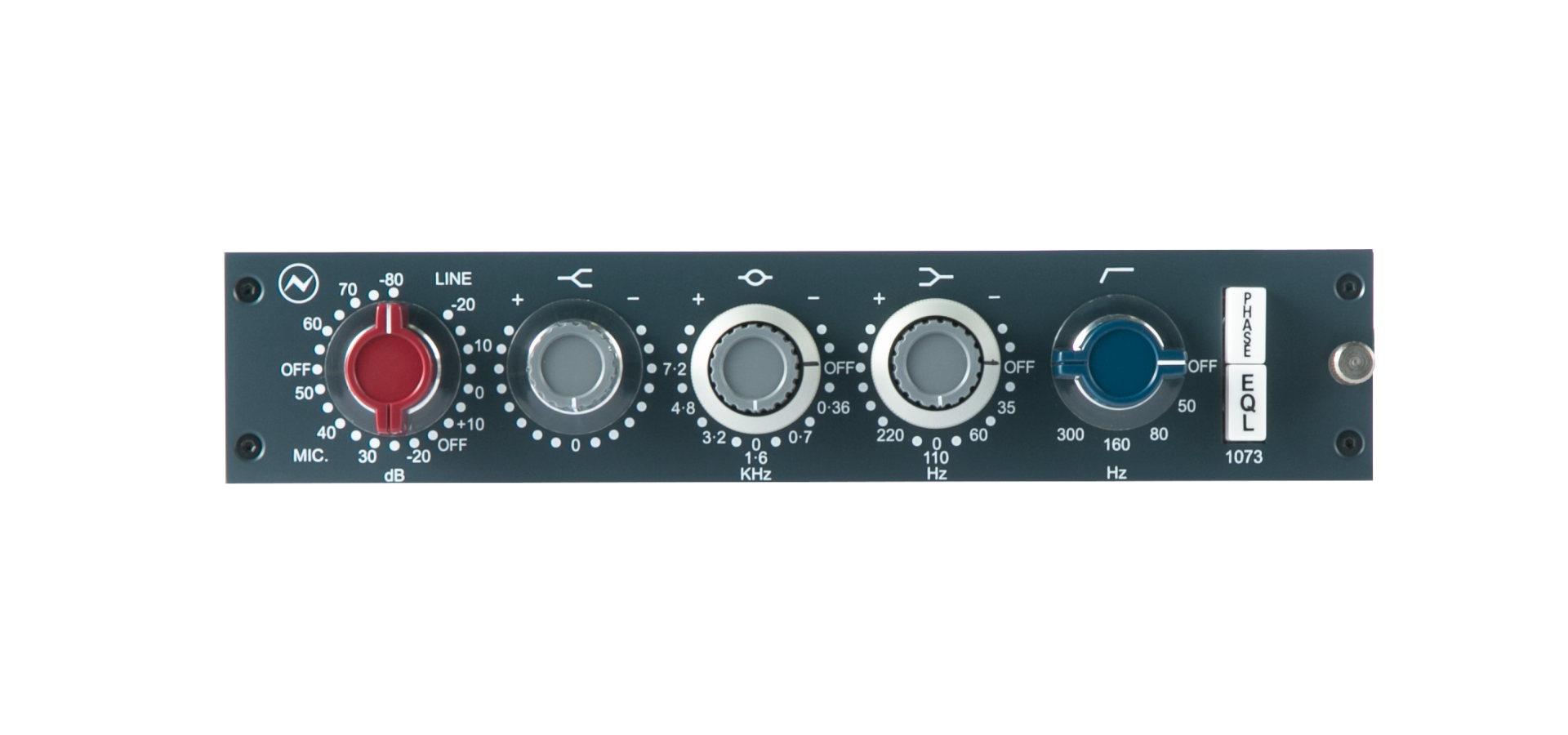

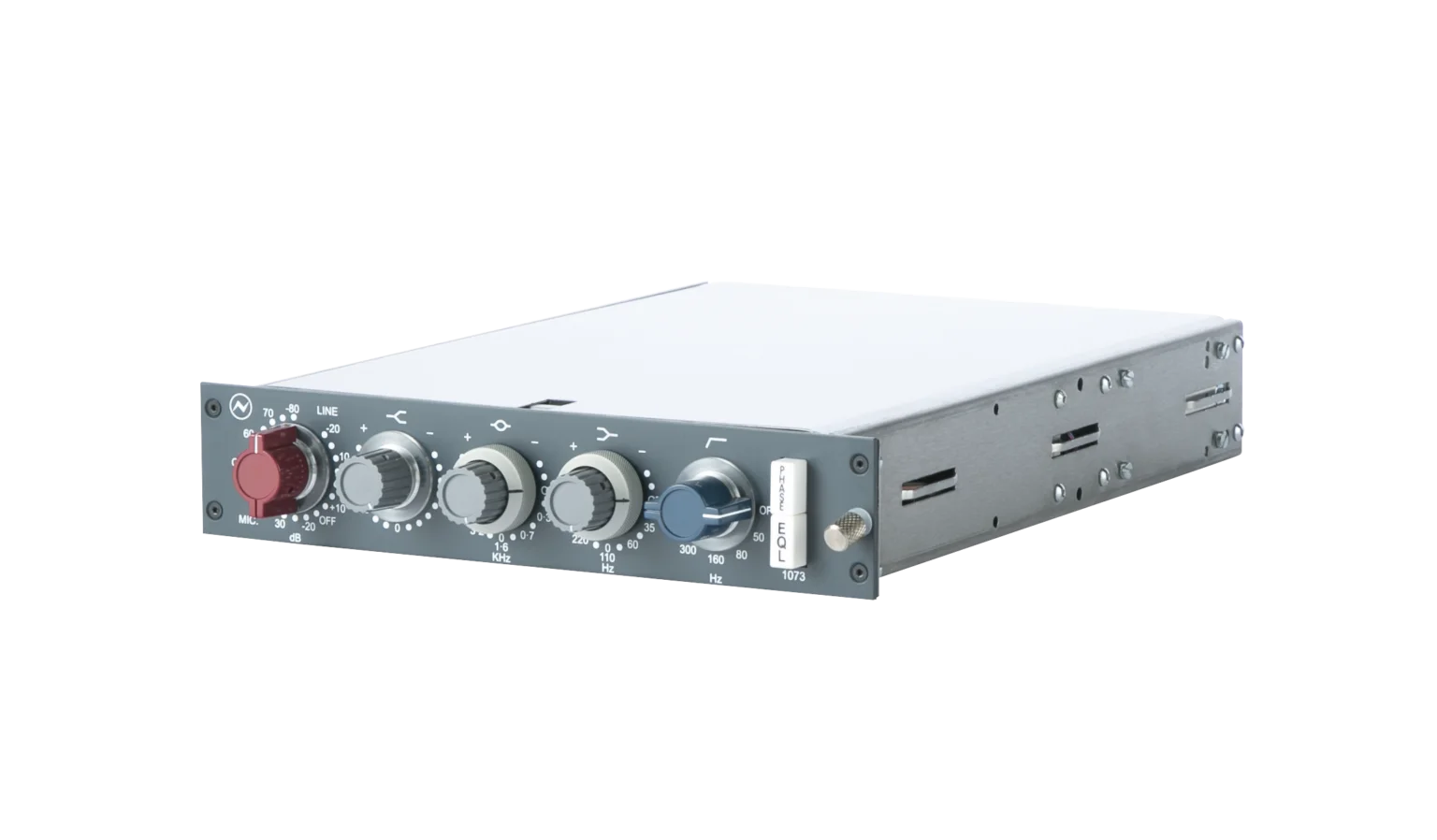

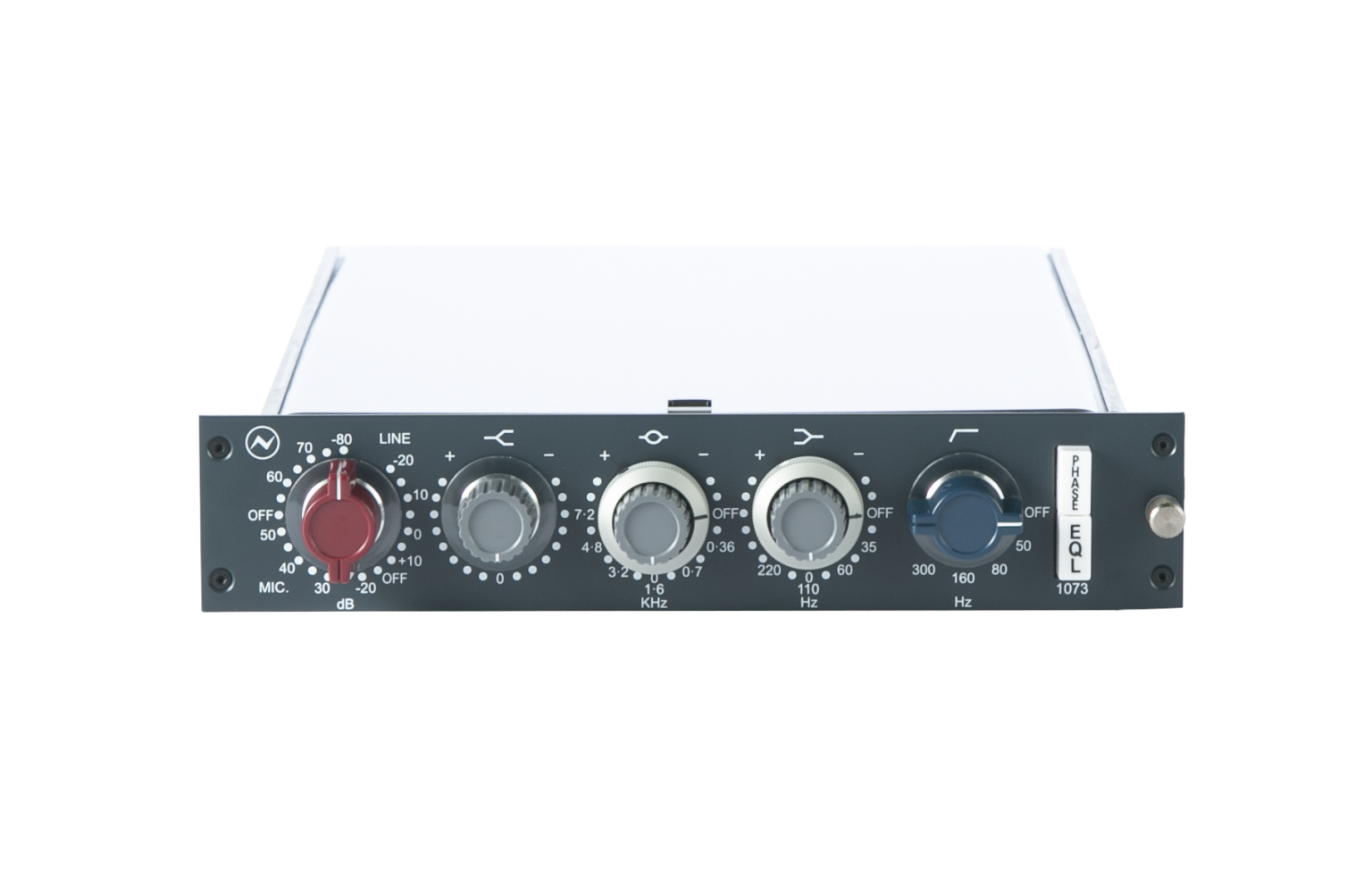

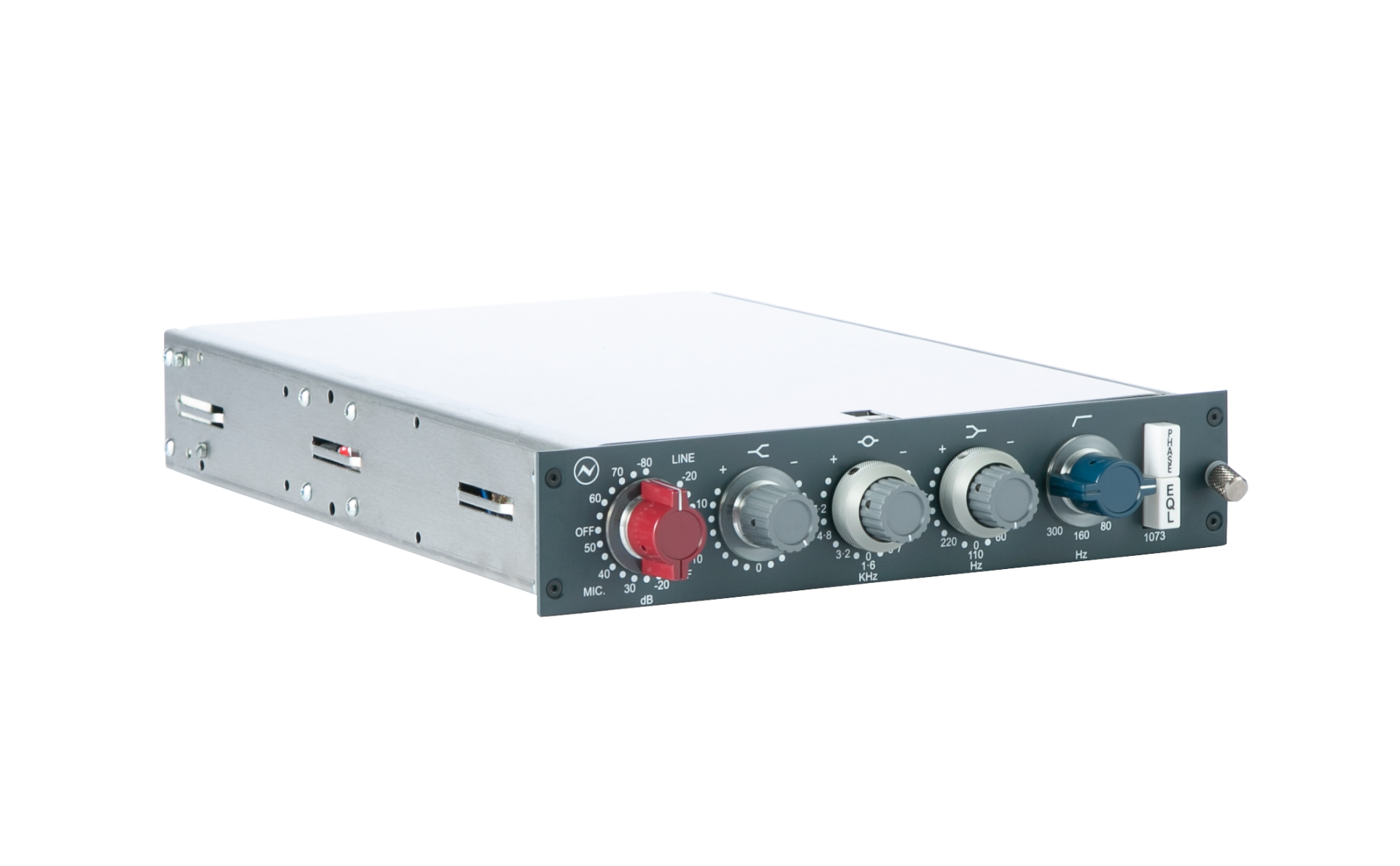

VERTICAL MODULE!!1073 MIC PREAMP & EQUALISER Launched in 1970, the original 1073 is perhaps the world’s most famous and desirable microphone preamp. The first choice of countless leading producers and artists, the 1073 delivers the unique Neve sound featured on some of the most famous recordings of the past 30 years. The big, punchy sound of the 1073 compliments any musical genre—from rock to pop, hip-hop to rap, thrash to classical. Handcrafted and completely hand-wired by Neve’s dedicated professionals in Burnley, England, the modern-day 1073 is produced to the same exacting specifications of the original modules. Considerable resources have been devoted to the acquisition of the same original components to ensure the sound remains true. While other manufacturers are content with merely copying the original 1073, Neve has remained faithful to the original, right down to the component level. Looking for an outside opinion? Lynn Fuston at EQ Magazine performed an in-depth review of the modern-day 1073 versus a vintage model. We think you’ll find his conclusions quite comforting: http://www.eqmag.com/story.asp?sectioncode=39&storycode=4720. Where advances in manufacturing and testing have yielded greater consistency from unit to unit, Neve has welcomed such improvements. However, not all things lend themselves to enhancement. Case in point: audio transformers. While other manufacturers are content to use replacements, AMS Neve insists on the original Carnhill-built transformer, for which Neve owns the copyright. That is why only a genuine Neve sounds like a Neve. The Class A design 1073 microphone preamplifier features 3 bands of EQ, with one fixed high frequency band, two switchable bands with cut and boost capability, and a high pass filter. All Neve channel amplifiers are designed to accept signals from a wide range of microphone and line sources. The Neve 1073 mic pre and EQ combination adds warmth and depth to recordings, brings out subtle ambience, maintains spatial positioning, and more effectively captures a precise image. That’s why the 1073 mic preamp is considered by many to be the very essence of the Neve sound. Originally fitted to the custom console for Wessex A88, the 1073 module was used extensively during the 1970s on the Neve Consoles that helped define recording techniques for a generation of classic records. The Neve 1073 is the most sought after, and most copied microphone preamplifier in the world. It is small wonder that when asked which one piece of audio gear they could not live without, more professionals chose the Neve 1073 than any other single item.
Classic transformer microphone preamp amp (Class A design)
3 EQ bands
Handbuilt and handwired to original 1970s design
HP filter
Neve designed handwound transformers
Both inputs are transformer balanced and earth free
Microphone Input: Gain +80db to +20dB in 5dB steps.
Line Input: Input impedance 10k ohms, gain +20dB to 10dB in 5dB steps.
Output: Maximum output is >+26dBu into 600 ohms.
Output is transformer balanced and earth free
Distortion: Not more than 0.07% from 50Hz to 10kHz at +20dBu output
(80kHz bandwidth) into 600 ohms.
Freq Response: +/0.5dB 20Hz to 20kHz, 3dB at 40kHz. EQ Out.
The 1073 can be purchased as single or multiple units. Each 1073 module has been designed to perfectly retrofit into the 80 Series Neve Classic consoles as part of a channel strip or can be mounted in a custom frame. Of course we can help you in finding a personal solution for an complete system out of the differnt components of the Systems from AMS Neve. Please get in touch via phone or e-mail, and we discuss solutions and price issues with you personally.
Für weitere Informationen, besuchen Sie bitte die Homepage zu diesem Produkt.
LunchboxTM... meet (another) Legend.
Launched in 1970, the original Neve 1073 module is perhaps the world’s most famous and desirable microphone preamp and EQ for recording vocals and instruments of all types. The first choice of countless leading producers and artists, the 1073 delivers the unique Neve sound featured on many of the most famous recordings of the past 40 years. The big, punchy sound of the 1073 classic complements any musical genre – from rock to pop, hip hop to rap, thrash to classical.
And now the EQ section of that classic unit is available for your LunchboxTM.Crafted in England by Neve engineers, the 1073LBEQ mono EQ module retains the unique sonic characteristics of the original 1073 classic EQ by using the same EQ circuit architecture and matching components. And it delivers it in a modern and portable form-factor that professional producers and engineers demand.
With new features like a signal presence LED and Neve’s cleverAudio Processing Insert design, the 1073LBEQ takes your LunchboxTM to the next level.
Simply install into an empty slot in your compatible LunchboxTM rack, connect your line level signals and inject the legendary Neve EQ sound into your audio creations. And it's the perfect pairing for the incredible Neve 1073LB microphone preamp module. The 1073LBEQ module can be inserted between the input and output stages of the 1073LB module, creating a true 1073 classic audio path.
Revolutionary.
Highlights
Legendary 3-band EQ design
Rotary controls provide accurate adjustment of the 1073 3-band EQ and High Pass filter
Signal presence LED illuminates green from a level of -25dB and red from a level of +24dB
Switch for EQ IN/OUT function, with LED indication
Electronically balanced circuits used in Line Input and Line Output stages for standalone module use
Audio Processing Insert design allows the audio to/from the 1073LBEQ module to be inserted into the audio path of an existing 1073LB module (modules must be fitted in the same LunchboxTM)
Fully screened module, packaged in Mu-metal case helps eliminate stray electromagnetic fields from LunchboxTM PSU or other module types
Achtung:
Der Stromverbrauch dieser Module ist so groß, dass wir nur empfehlen, die Module in einer 6er API Lunchbox und den BAE Lunchboxen zu verwenden. Eine API VPR damit komplett zu bestücken schafft die PSU nicht. Leider funktionieren die Module im A-Designs 500HR auch nicht.
Launched in 1970, the 1073 is the first choice of leading producers and artists, delivering the unique Neve sound on some of the most famous recordings of the past 40 years. The big, punchy sound of the 1073 complements any musical genre – from rock to pop, hip-hop to rap, thrash to classical.
And now it is available for your LunchboxTM
Designed and manufactured in England, the 1073LB retains the unique sonic characteristics of the original 1073 Classic microphone preamplifier by using the same architecture, matching components and original hand-wound transformers. And it delivers it in a modern and portable form-factor that professional producers and engineers demand.
With new features like a fine TRIM control, switchable microphone input impedance, signal presence LED, intelligent protected switching of front combi-XLR input connector and Neve's clever Audio Processing Input design, the 1073LB takes your LunchboxTM to the next level.
Simply install into an empty slot in your compatible LunchboxTM rack, connect your microphone or line level signals and inject that legendary sound into your audio creations.
Highlights
Classic transformer microphone preamp amp (Class A design)
Neve designed hand-wound transformers
Both Mic and Line inputs are transformer balanced and earth free
Gain knob with Signal Presence LED
+5/-10dB level Trim control with integrated phantom power on/off switch
Phase, Impedance and Front Input selector switches
Front combi-XLR connector with intelligent switching of phantom power
Audio Processing Insert design allows processing from adjacent Neve modules in same LunchboxTM to be inserted into the 1073LB's pre-output stage
Microphone Input: Gain -80db to -20dB in 5dB steps
Line Input: Input impedance 4k ohms bridging, gain -20dB to +10dB in 5dB steps
Output is transformer balanced and earth free
Distortion: Not more than 0.07% from 50Hz to 10kHz at +20dBu output
(80kHz bandwidth)
Freq Response: ±0.5dB 20Hz to 20kHz, -3dB at 40kHz
Crafted in England by Neve engineers
Achtung:
Der Stromverbrauch dieser Module ist so groß, dass wir nur empfehlen, die Module in einer 6er API Lunchbox und den BAE Lunchboxen zu verwenden. Eine API VPR damit komplett zu bestücken schafft die PSU nicht. Leider funktionieren die Module im A-Designs 500HR auch nicht.
Launched in 1970, the Neve 1073 Classic soon became the first choice mic preamp for leading producers and artists.
Found on some of the most famous recordings of the past 40 years, the big, punchy sound of the 1073 complements any musical genre – from rock to rap to classical. The quality is legendary.
Designed and built in England, the modern-day 1073N is produced to the exact specifications of the original, matching components to ensure the sound remains true. The Class A design 1073N microphone preamplifier has 3-band EQ (fixed HF plus two switchable bands with cut/boost capability) and a high pass filter. The Neve 1073N mic pre and EQ combination adds warmth and depth to recordings, brings out subtle ambience, maintains spatial positioning, and captures a more precise image – embodying, think many engineers and producers, the essence of the Neve sound.
Building on the 1073 classic module features, the 1073N introduces extra functionality with an integrated DI input, I/O connectors for direct connection of microphones and instruments and other equipment, phantom power for powered microphones and a PSU for standalone use. It can also be fitted into compatible racks/housings or retrofit into 80 Series Neve Classic consoles. Neve – no question.
The 1073OPX continues the 1073® lineage through to the new generation, packing eight legendary preamps into a 2U rack unit. Front-mounted XLR/TRS connection and rear D-type give ultimate connectivity to any Studio/Live/Broadcast environment and its modern remote-control software gives two-way control over its features and Total Recall® of all settings.
Microphone & Line sources benefit from the Marinair® transformer-coupled input stage and Instrument sources can be connected directly to the front-mounted D.I input for recording in the studio control room. The 1073OPX’s unique Analogue monitor signal path allows for use as a complete standalone I/O interface or as a live room remote preamp with full latency-free monitoring cue mix signal path.
Its new, powerful digital card comes with Neve’s industry-revered mastering-grade converters. This option gives up to 192kHz/24-Bit A/D conversion over USB connection for use as a Primary Audio Interface to any connected DAW-enabled computer as well as Primary and Secondary Dante® connectivity for a multitude of Audio-over-IP applications. The 1073OPX modern, elegant hardware and software design takes the classic Neve sound into the future.
The 1073OPX Digital Option
The 1073OPX Optional Digital card provides a USB and Dante AD/DA interface with eight channels of analogue to digital conversion for each 1073OPX preamp output and two channels of Digital to Analogue conversion for the digital monitor return signal path. The USB connection allows the 1073OPX to be connected to a DAW enabled PC/MAC computer to be used as a Primary/Core audio interface. In addition to the USB connection, Primary and Secondary Dante connections allow for the 1073 OPX to be connected to any Dante Audio-Over-Ip network as a Dante enabled preamp. The Digital card can be retrofitted easily to any existing 1073OPX units.
Features:
8 Channels of remote-controlled 1073 Mic/Line/Instrument Preamplifiers
Exclusive Neve® Marinair® transformers on the Microphone input
Class-A transformer-less DI input
Remote control software can control up to 8 1073® OPX racks at a time (64 preamps!)
Automatic Total Recall™ of all settings
Front Mic/Line combi input
Rear Mic/Line D-Type connection
80Hz High pass filter
-25dB pad
Phase flip
Smart Phantom Power control
Hi/Lo Impedance selector from 300Ω to 1.3KΩ
Separate stereo monitor path with Independent level control
Latency-free monitoring of all signal sources
Eight front D.I inputs for instrument tracking
Front-mounted Headphone output
Digital Option containing:
USB connection for use as a standalone primary audio interface/core audio device
Dante Primary and Secondary connection for Audio-over-IP application
Word Clock Sync In/Out
electable Headroom from +18, +24, +26dB

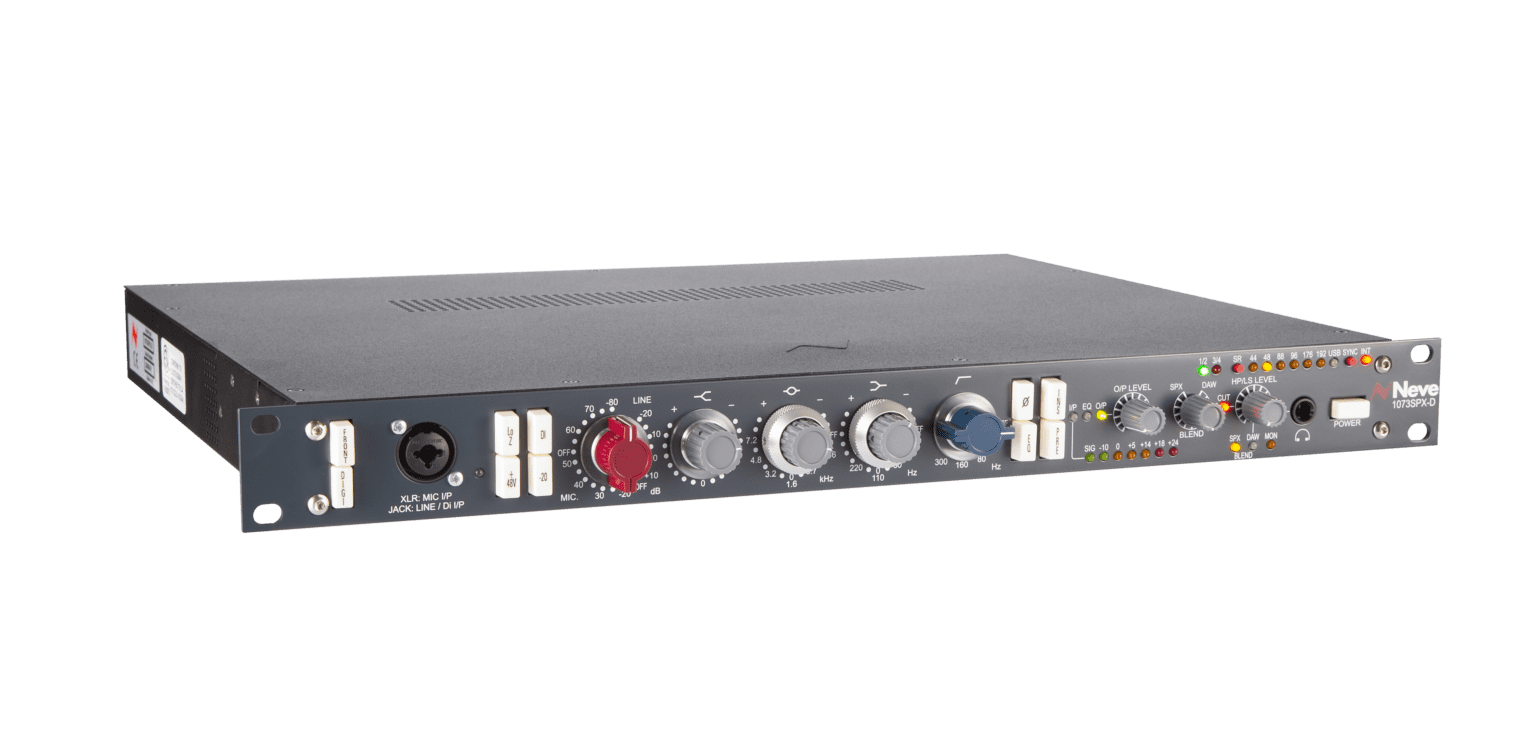

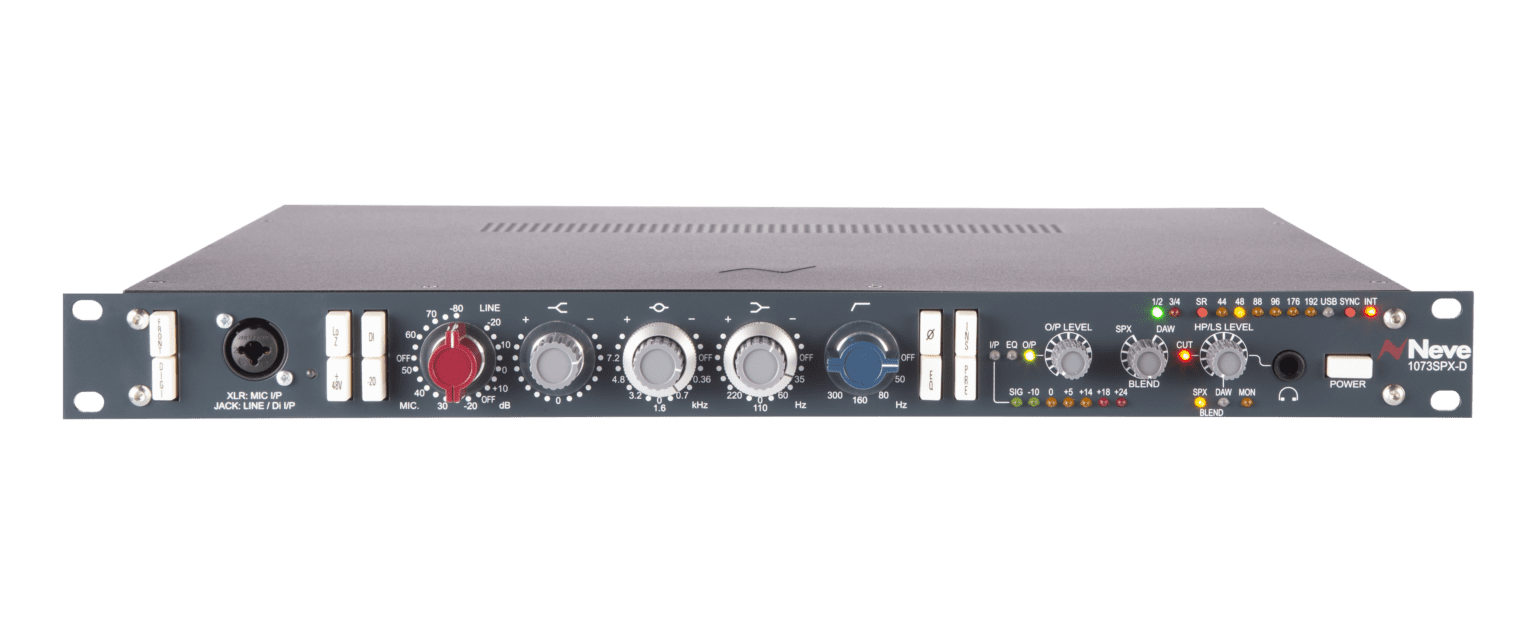

The quality is legendary. Designed and built in England, the modern-day 1073SPX is produced to the exact specifications of the original with matched components to ensure the sound remains true.
The 1073SPX has a Neve 1073® Class A design microphone preamplifier, with 3-band EQ (fixed HF plus two switchable bands with cut/boost capability) and high pass filter. Building on the 1073 classic module features, the 1073SPX introduces extra functionality with integrated DI input, phantom power, selectable Insert feature, level meters, output level control and front input connectors for easy and direct connection of microphones and instruments. The 19” rack-mount 1U unit includes an external multi-voltage PSU
An optional Digital I/O module (to be announced early 2018) can be fitted into the 1073SPX and provides digital connectivity at a range of sample rates. Mastering-grade converters are used and the simple configuration and convenience of digital connectivity make the 1073SPX the ultimate front-end for capturing the best possible recordings.
Features:
Genuine Neve 1073 transformer-coupled microphone preamplifier / EQ circuit, in a single 1U 19" rack mount enclosure
Exclusive Neve Marinair™ transformers used on input and output stages
Convenient connections for Mic, Line & DI inputs on front of unit, with switchable mic/line input connections on the rear of the unit
Switchable +48v Phantom Power, Hi/Lo impedance, -20dB pad and DI ground lift on the input stage
Switchable Phase, and EQ in/out
Insert send and return loop feature allows external equipment to be connected easily to the 1073SPX audio chain, such as mono limiter/compressors;
Pre-EQ insert send/return - a line level send is available from the mic-preamp output stage and a return just before the EQ stage
Post-EQ insert send/return - a line level send is available from the post-EQ stage and a return just before the main output stage
7-stage LED signal level meter - can show mic/line/DI input-stage level, EQ-stage level or output-stage level up to +24dB
Output level control
External multi-voltage PSU
Optional Digital I/O module
The classic original EQ/Mic Pre has been re-released!Neve Outboard equipment is faithfully reproduced to the exact standards that Neve has employed ever-since the first modules were made, including the original Neve specifications for all components, design, manufacture and test.

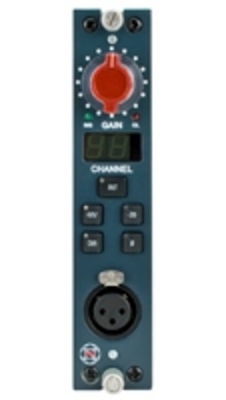

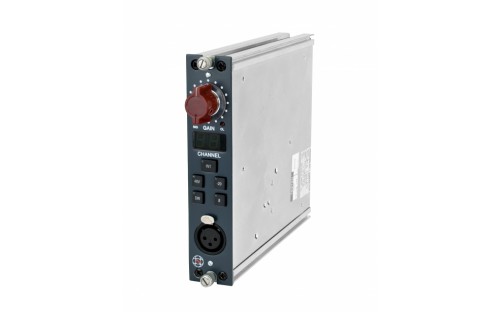

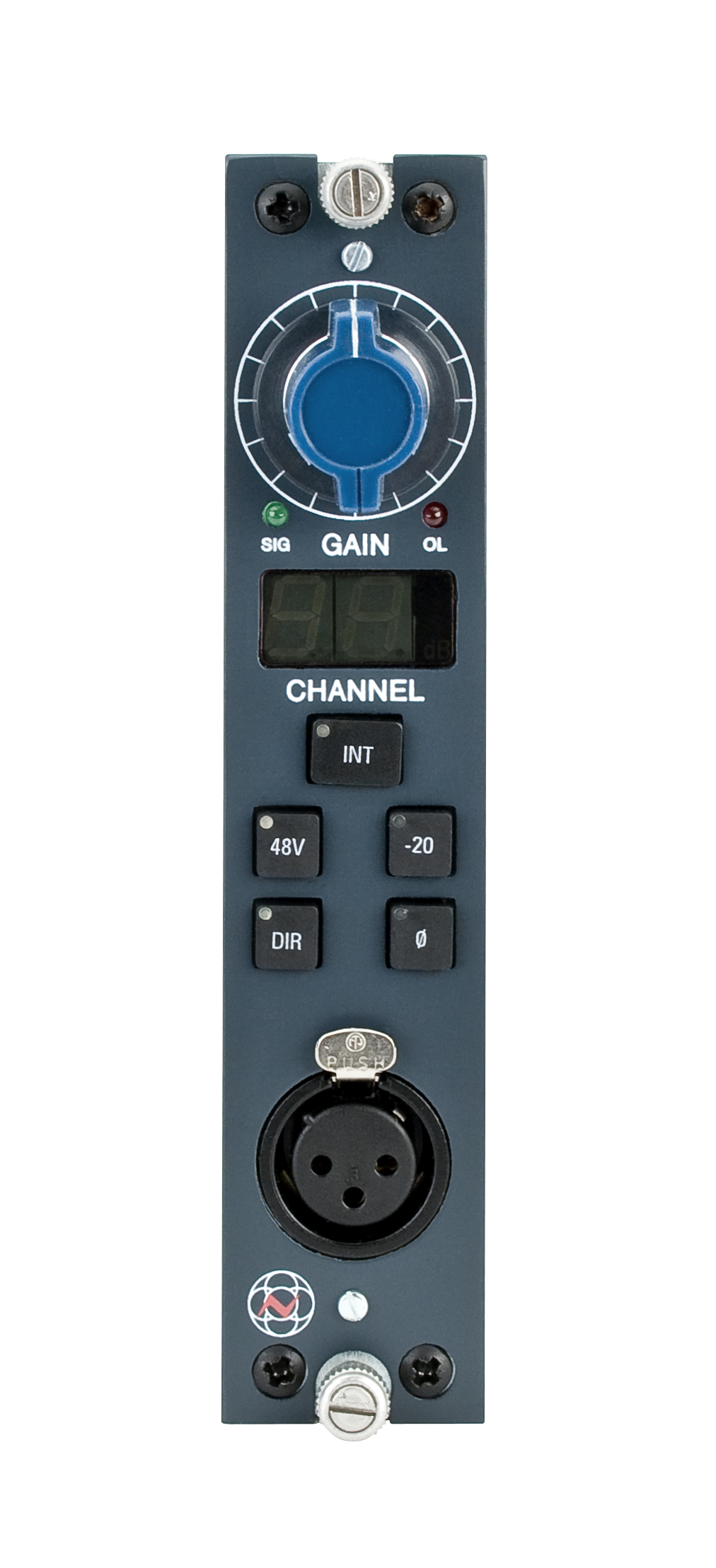

AMS Neve Air Mono Mic Pre Module (Blue)The Neve 1081R makes an ideal alternative for engineers looking to deliver the Neve sound quality, without investing in a new console. The rack can be positioned remotely and controlled by a PC making it ideal for both studio and live recordings. This system consists of a micro processor controlled 12 way rack and a choice of three mic pre-amplifiers, the 1081, 1073 and Air Montserrat (from the vintage Air Montserrat console). By selecting a combination of these three mic pre-amp designs, engineers have the flexibility to record classical music, pop, rock and roll or any required sound. The Air mic pre is the optimum choice for ambient mic techniques. The 1081 offers a perfect response to close micing techniques and the 1073 provides a unique class A sound. The 1081R rack is connected to a PC by means of a 9 pin serial control cable via an RS232 to RS485 converter. The settings for the 1081R channels can be saved to and loaded from the PC. Operational settings such as gain, phase & 20dB pad can be controlled either from the rack itself or more commonly, via the interface screen.

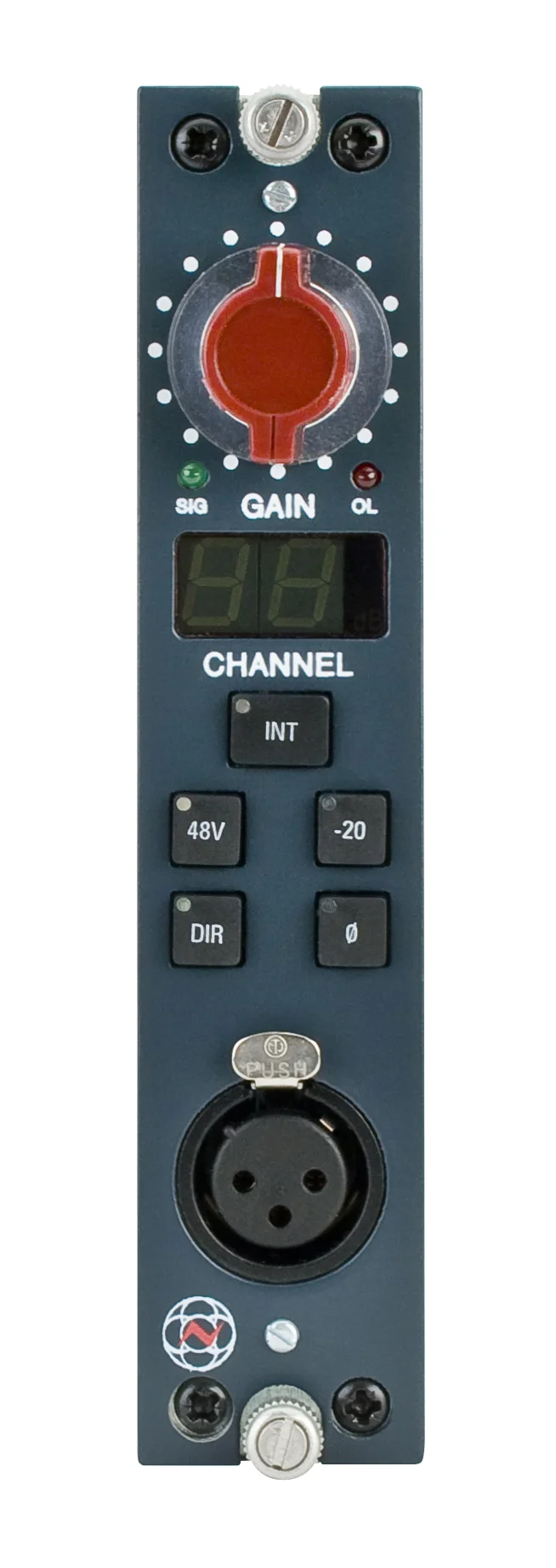

1081R mic preamp channel strip. The 1081R is the ideal solution for engineers seeking multiple channels of Neve sound quality without investing in a new console. This system consists of a microprocessor-controlled 12-slot rack and a choice of two superb mic preamps, the Neve 1081 and Air Montserrat (from the vintage Air Montserrat console).By selecting their desired combination of mic preamps, engineers have the flexibility to record classical, pop, rock, or any other musical format, and control it all from a Mac, PC or Neve Console. In terms of application, the Air Montserrat Pre is the optimum choice for ambient recording, while the 1081 offers the perfect response for close miking of vocals, acoustic instruments, and percussion.The rack can be positioned remotely and controlled via Mac or PC, making it the perfect choice for studio or live recording applications. (Connections come courtesy of a 9-pin serial control cable via RS232 to RS485 converter.) Operational settings such as gain, phase and 20db pad can be controlled either from the rack or via the interface screen, and stored for later recall.The 1081R allows these legendary mic preamps to be used as remote inputs for the 88RS analogue console, or provides the perfect companion to our digital consoles.HeritageThe mic preamps utilised in the 1081R Remote Rack represent the very essence of the Neve sound. These pres?the 1081 and the Air Montserrat?are chosen time and time again by recording engineers and producers all over the world. They have proven themselves over decades of tracking some of the most famous recordings of all time, and are found in a vast majority of the world's finest studios.SpecificationsMicrophone Module Specifications and Description
Microphone Input : XLR inputs, Zin 1Kohm @ 1kHz, gain +20 to +70 in 5dB steps
Microphone Maximum Input Level, with 'pad' in : +24dB
Outputs : Max +26dB into 600 ohms. Z out 50 ohms +/-5% @ 1kHz, balanced
Distortion : Not more than 0.07% for 20dBm output from 50Hz to 10kHz @ 60dB gain
Microphone EIN : > -123dBm 20Hz to 20kHz @ 60dB gain
Module Dimensions : 35mm x 158mm
Optional Mic/Line input Modules Specification and DescriptionThere are optional variants of the above modules which allow a line input to be switched into the circuit allowing complete low impedance, line level feed from the rack to the console.Line Input: Zin 50k ohm, unity gain, electronically balanced.
Rack Housing for the Modules. The rack can be positioned remotely and controlled via Mac or PC, making it the perfect choice for studio or live recording applications. (Connections come courtesy of a 9-pin serial control cable via RS232 to RS485 converter.) Operational settings such as gain, phase and 20db pad can be controlled either from the rack or via the interface screen, and stored for later recall 12 Slot Rack (4u), designed for 1081R, PSU included. Modules not included Für weitere Informationen, besuchen Sie bitte die Homepage zu diesem Produkt.
AMS NEVE 2254/R Mono Limiter/Compressor Entwickelt wurde dieser Kompressor im Jahr 1969 und wurde schnell zu einer Legende. Diskrete Class-A Schaltung, Transformer gekoppelte Eingangsstufe, innovatives Bridge-Driver Design, Side-Chain und die Ausgangsstufe garantieren einen völlig eigenständigen Sound. Die Features des NEVE 2254/R im Überblick:klassischer Mono Limiter/ Kompressor der nach den Angaben der späten 60er Jahre gebaut wirdhandgefertigt in Burnleyoriginale NEVE 2254 diskrete Class A Schaltungmanuelle schnelle Attack-Zeit und transparent Level-Kontrolleunabhängige Ein-und Ausgänge für Limiter und KompressorBypass-SchalterGeräte können für Multikanalanwendungen miteinander verlinkt werdenkompatibel mit der NEVE Recall Software – verbinden sie den 2254/R über USB mit einem PC oder MAC
AMS Neve 2264ALB mono limiter/compressor moduleOriginally designed in 1974, the Neve 2264A mono Limiter/Compressor unit quickly became a legend. Delivering similar facilities and performance as the earlier 2254 Limiter/Compressor type, it did so despite being packaged in a more compact form-factor. Discrete, Class A/B design and transformer-coupled circuits used in the input, innovative bridge-driver design, side-chain and output stages ensured a totally unique sound. The original 2264A units are still sought after, decades after production stopped, and they remain one of the milestone pieces of studio equipment.And now the 2264A unit is available for your LunchboxTM.Crafted in England by Neve engineers, the 2264ALB retains the original 2264A’s unique sonic characteristics by using the same architecture, matching components and original hand-wound transformers and adds new features: a Signal Presence indicator LED and a Slow Attack option. And it delivers it in a modern and portable form-factor which professional producers and engineers demand.Simply install into an empty slot in your compatible LunchboxTM rack, connect your line level signals and inject the legendary Neve dynamic sound into your audio creations. And it's the perfect pairing for the incredible Neve 1073LB microphone pre amp module. The 2264ALB module can be inserted between the input and output stages of the 1073LB module, creating an all-new Neve classic audio path.Classic... and Revolutionary.Highlights
Classic mono Limiter/Compressor, available in a 500-series format
Transformer-coupled circuits used in Input, Bridge-driver, Side-chain and Output stages
Independent Limiter and Compressor IN/OUT selectors
BYPASS switch connects input terminals directly to output terminals
Slow Attack switch changes between classic 2264A attack settings and new Slow Attack setting for buss compression work
Digital LED meter with approximate PPM ballistics indicates 0dB to 20dB of gain reduction
Audio Processing Insert design allows the audio to/from the 2264ALB module to be inserted into the audio path of an existing 1073LB module (modules must be fitted in the same LunchboxTM)
Fully screened module, packaged in Mu-metal case helps eliminate stray electromagnetic fields from LunchboxTM PSU or other module types

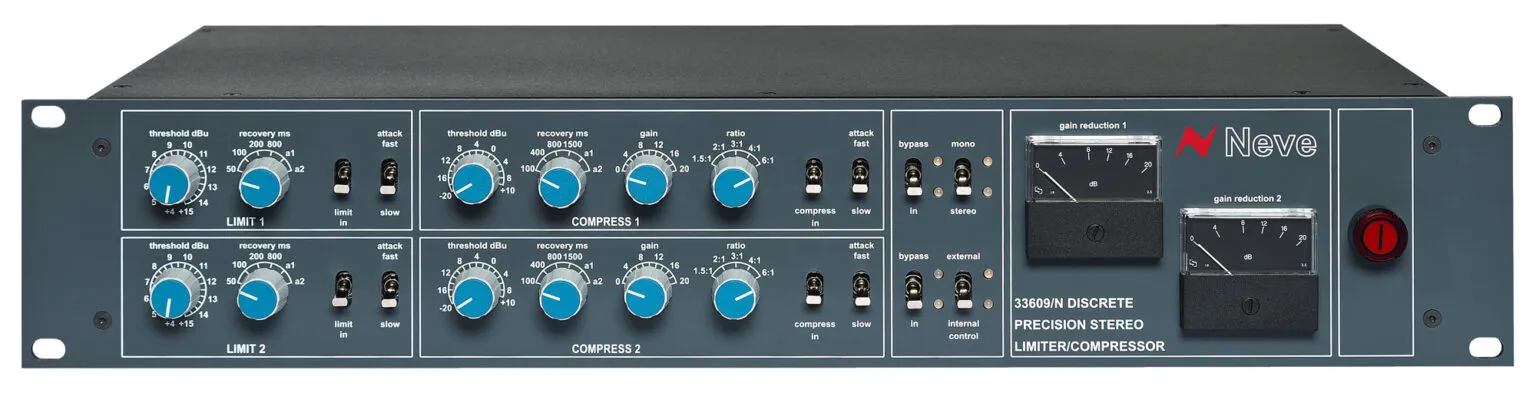

The Neve 33609 Stereo Compressor offers comprehensive limiting and compression facilities for music recording, mastering, post production and broadcast applications. The combination of hand-wired transformers and gain reduction circuitry produces a sound quality which is often duplicated, yet seldom achieved by any other compressor / limiter. Coupled with the unit’s unparalleled ease of use, this inimitable sound quality has made the 33609 a worldwide studio standard for three decades.
The hallmark 33609 compression sound is very smooth, and extreme settings may be used with the compression or limiting remaining relatively transparent. After several versions of this classic Neve compressor over the years, today's 33609 provides the best of both worlds: original Neve 33609 sound, with enhanced internal and external I/O switching compared to the original model. The 33609 also utilises a discrete output stage like the original model, for a slightly warmer sound that is preferred by many professionals over previous iterations. Multiple units can be easily linked for multi-channel operation.
The 33609 features independent sidechains for the compressor and limiter sections, with similarly independent threshold, recovery and attack controls. The compressor features a selection of ratios from 1.5:1 to 6:1 and a gain make-up control that comes before the limiter. Overall gain reduction is indicated on a moving coil meter.
Much like our classic 1073 and 1081 microphone preamplifiers, the 33609 Stereo Compressor is often cited as a "desert island" compressor - one which a healthy sampling of the world’s top engineers and producers would choose above all others.
Features
Classic Stereo Compressor / Limiter designed to exacting 1970’s specifications
Made using hand-wired Neve transformers in Burnley, England
Classic 2254 feedback compression circuitry
Brick Wall Limiting
Transparent level control
Perfect for mixing, broadcast, and mastering applications
Hard Limit feature for digital recording
Limit in/out Compress in/out
Discrete output stage for slightly warmer sound
Mounts 1 or 2 4081 units into a 19" rack enclosureThis 3-part kit consists of 2x rack-mount 'ears', 1x blank plate and all fastening hardware. To mount 2 4081's into a 19"rack enclosure, fasten the 2 units together, then use the 2 rack-mount 'Ears' - one on either side.To mount one unit, fasten an 'ear' to one side of the unit and the blank plate to the other side of the unit.All front panels are supplied in Neve heritage blue.
The expansion board is fitted internally to a 4081 unit and has two modes of operation, determined by whether a FireWire connection is detected or not.
Mode 1 - Standalone (no FireWire detected):
The 4 analogue outputs from the 4081 Mic Pre or Insert are mapped to the two stereo AES OUTPUTS. The two stereo AES INPUTS are mapped to the 4 analogue outputs – these are simply an AES to analogue convertor. The 4 analogue outputs are also available on the 25 way d-type on the back of the main 4081 unit.
If no sync input is detected (either Wordclock or AES), then the expansion board runs on internal sync and the sample rate is selected by the UP/DOWN buttons on the front panel.
If a valid sync input is detected, then the sample rate is automatically calculated and indicated on the front panel.
External AES EBU cable lengths are limited to 100M.
Mode 2 – FireWire detected:
Multiple 4081 units can be cascaded onto one FireWire stream, or starred back to the FireWire card. There is currently a limit in the driver of 4 units per FireWire stream. 4 units gives 16 IN and 16 OUT on a single DAW connection if using FireWire, but the available bandwidth allows 16 IN and 16 OUT at 192kHz.
The first unit in the chain becomes the master, and provides the sync to the other 4081 units either via FireWire or Wordclock. Supports ASIO driver – the sample rate is set via the DAW software driver.

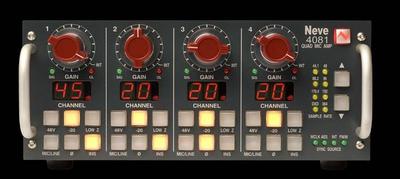

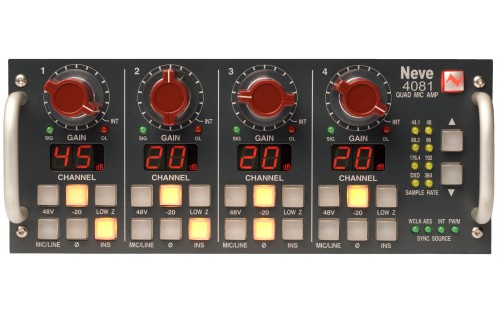

4081 Quad Mic Preamp
Four Classic Mic Preamps, One Powerful Remote-Controlled UnitThe 4081 Quad Mic Preamp builds on the incredible success of the 1081 and 1081R modules and provides both powerful control and legendary Neve sound.Perfect for vocals, ADR and Foley Recording, the 4081's features make it the number one choice for any studio, OB truck or live stage environment.
Every function of the 4081 can be controlled directly from the front panel or by remote control using a Mac or PC with Neve Remote Control software. This provides a simple and elegant solution for users of ProTools, Nuendo, Cubase and similar DAW systems. Multiple 4081 units can be linked together to create up to 64 independent channels of Mic Preamps or Line Level inputs – all controlled from a single computer.
An optional Digital card provides a FireWire/AES interface with four channels of A/D conversion to either AES or FireWire. An insert point is available before the A/D converter on each channel to allow external, analogue Outboard equipment to be switched into the signal path. Four channels of AES-to-analogue or FireWire-to-analogue conversion are also available.An optional 19" rack-mount kit can be used to securely mount one or two 4081 units into a 19" rack enclosure.Highlights
Remote Control of legendary Neve microphone preamp design
Four genuine 1081 Mic preamp channels in a single 9.5” wide unit
Two units can be linked together to provide 8-channels in a 19” unit with optional 19" rack-mount kit
Remote control using a Mac or PC with Neve Remote Control software
XLR Mic input can be switched between Mic and electronically balanced Line
Switchable 48V Phantom power supply
Digital I/O Option: Firewire/AES interface with four channels of A/D conversion to either AES or FireWire and 4 channels of D/A conversion. Analogue Insert (pre A/D converter) per channel.
Der 8051 ist ein analoger Kompressor mit 6 symmetrischen Audiokanälen, vervollständigt mit 2 Side Chains und Key Inputs. Es können, mit nur einem am Key Input anliegendem Signal, alle 6 Audiokanäle bearbeitet werden. Mit diesen Eigenschaften eignet er sich besonders für die Bearbeitung von DolbySurround 5.1 Anwendungen. Flexibles Side-Chain-Routing mit Verstärkung und Filterbearbeitung macht ihn zu einem starken Partner für den Bereich Mastering. Bei dem Einsatz des 8051 kann man den selben unverwechselbaren satten Neve-Sound erwarten, mit dem bereits der legendäre 33609 überzeugte. 6 symmetrische Eingänge idealer Surround Broadcast Kompressor Side Chain Control Regler Side Chain A/B bias Control High und Low Pass Filter legendärer NeveSound umfangreiche Steuerungsmöglichkeiten der Linkfunktionen Der Key Input und LFE Filter Input sind elektronisch symmetriert Alle anderen Eingänge sind mit Transformatoren symmetriert, 3.6kOhm Eingangsimpedanz Alle Ausgänge sind elektronisch symmetriert Transformatoren mit maximalen Pegel von, +26dBu bei 600Ohm. Equivalente Input Noise (20kHz band): THD+N (für 20dBu Input bei 1kHz): maximaler Ausgangspegel Level: >26dBu an 600 ohms Frequency Response +/0.5dB 20Hz to 20kHz
Features:
Two Inputs Per Channel – Seamlessly switch from Mix to Record Inputs at the push of a button
Third channel strip Input for dual-layer use
Mix up to 48 Mono Signals at once
Marinair® Transformers on Mix, AFL, CUE bus for true Neve voltage mixing
80 - series Neve® sound in a compact frame
Large format console Centre Section. Multiple speaker sets, dual Cue system and three-way talkback system
Internal Snapshot system to Save/Load multiple all console settings across multiple sessions
500 series slots for internal expansion options
1073® preamps and DI inputs with Smart Routing for recording in the live or Control room
In-Line Console capability
25-way D-Type and Balanced Jack Inputs on rear and on front for a combination of simple and professional I/O Connection
The 8424 is designed to connect to and utilise all of your instruments and outboard equipment, becoming the centrepiece of your studio
