The via Fader is a brand new way to connect your 500 series racks and audio gear. This product is more than just 10 or 16 slide faders. Each fader channel has the necessary input and output electronics to allow the via Fader to interface to any balanced, unbalanced, transformer, or transformer-less line level signal. But most importantly... no additional mixer or audio interface is required. With its clean, uncluttered layout, the via Fader can be placed in a convenient desktop location or installed in your 19" rack. This gives you more choices when it comes to the studio layout. Not exclusively for 500 rack systems, the via Fader can be used for external DAW summing or as a line mixer for synths and samplers. In many cases, the via Fader can eliminate the need for a mixing console in your studio. The four via Fader models give you lots of possibilities. Model VF10 Connector Panel All audio connections are located on the bottom/rear of the via Fader chassis. For economy, the rear panel connector legend shows all four models with the connector legend for the Model VF10 shown at the very top.Connect the via Fader to virtually any line level source: balanced, unbalanced, transformer, or transformer-less. The VF10 line inputs and outputs are fully balanced and terminate on DB25 connectors that comply with the Tascam wiring standard. The via Fader has high headroom that will handle balanced signals up to +28dBu.As an added convenience, on the Model VF10 line inputs and outputs 9 and 10 may be accessed with the balanced TRS jacks instead of the DB25 connectors. Included on the bottom panel (not shown on this image) are jumpers that allow you to add 10dB of additional gain to each fader channel.

The via Fader is a brand new way to connect your 500 series racks and audio gear. This product is more than just 10 or 16 slide faders. Each fader channel has the necessary input and output electronics to allow the via Fader to interface to any balanced, unbalanced, transformer, or transformer-less line level signal. But most importantly... no additional mixer or audio interface is required. With its clean, uncluttered layout, the via Fader can be placed in a convenient desktop location or installed in your 19" rack. This gives you more choices when it comes to the studio layout. Not exclusively for 500 rack systems, the via Fader can be used for external DAW summing or as a line mixer for synths and samplers. In many cases, the via Fader can eliminate the need for a mixing console in your studio. The four via Fader models give you lots of possibilities. Model VF10M Connector Panel All audio connections are located on the bottom/rear of the via Fader chassis. For economy, the rear panel connector legend shows all four models with the connector legend for the Model VF10M shown second from the top.Connect the via Fader to virtually any line level source: balanced, unbalanced, transformer, or transformer-less. The VF10M line inputs and outputs are fully balanced and terminate on DB25 connectors that comply with the Tascam wiring standard. The master connectors are also fully balanced and available on TRS jacks.The via Fader has high headroom that will handle balanced signals up to +28dBu. Included on the bottom panel (not shown on this image) are jumpers that allow you to add 10dB of additional gain to each fader channel.

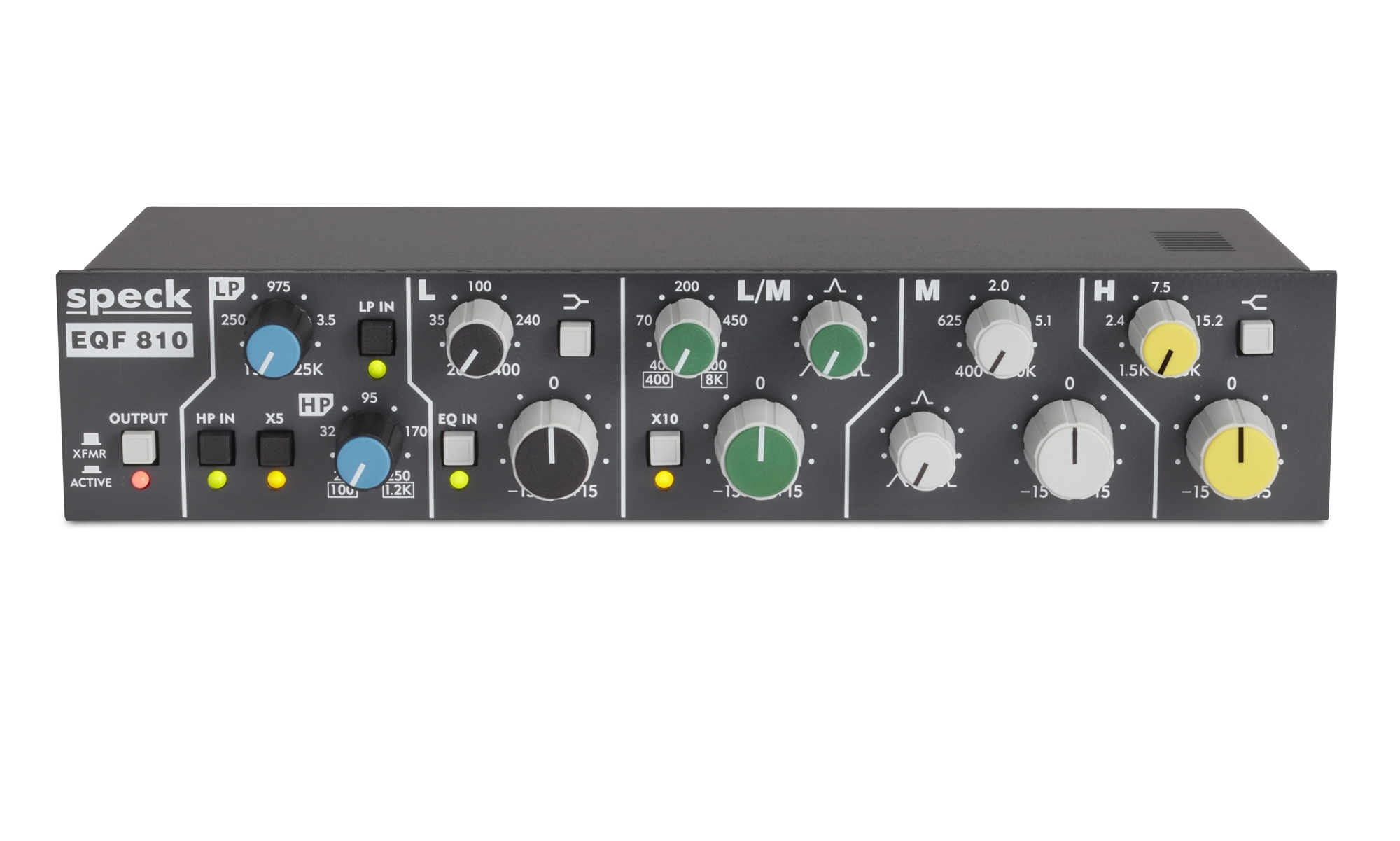

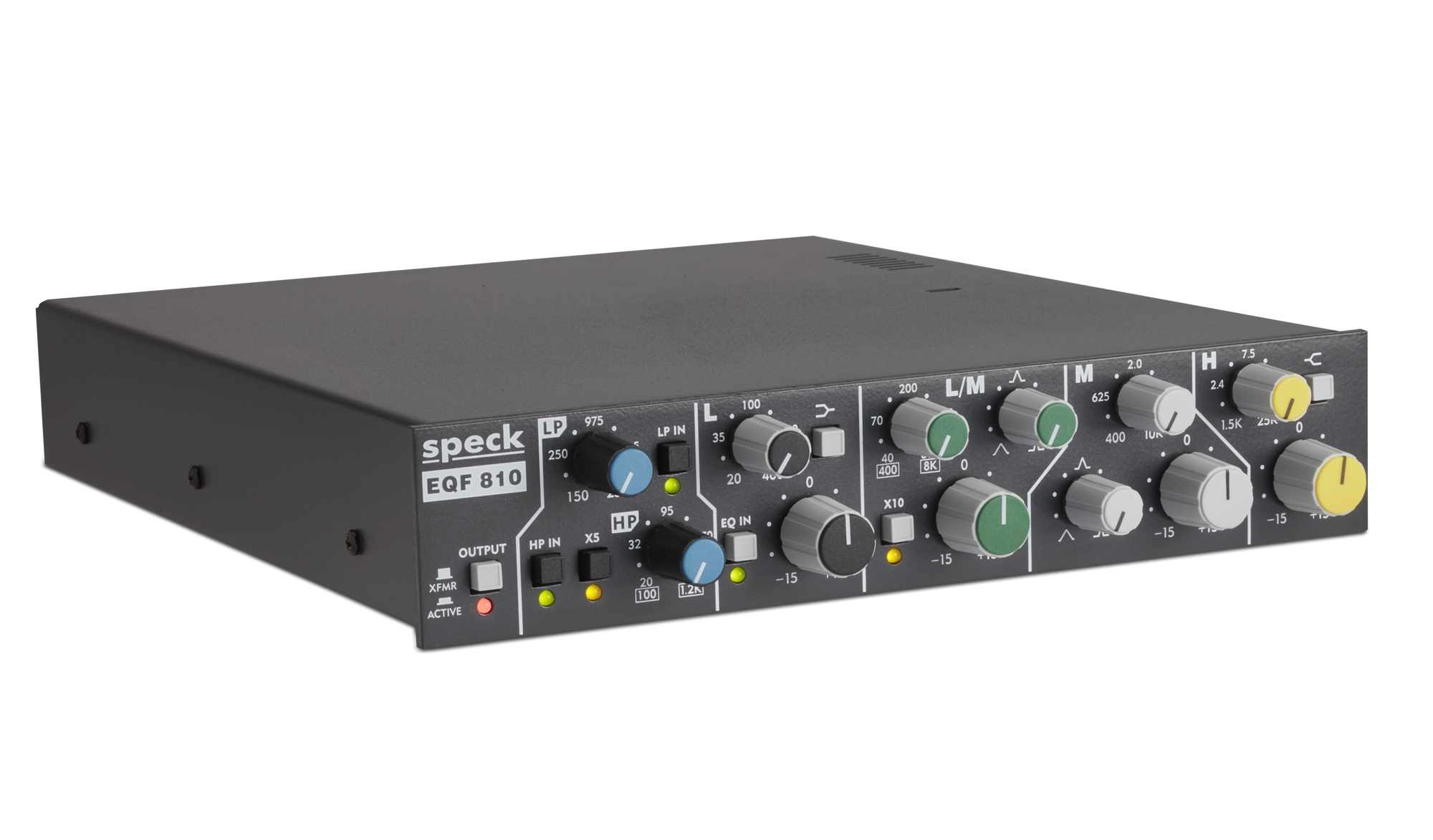

What is the EQF 810? The EQF 810 is a professional single channel analog parametric equalizer and variable filters in a 1/2 rack format. It is simple...it is useful...and it delivers the high quality and specifications found in all Speck Electronics gear. This compact 4-band parametric equalizer has 12 controls for equalization adjustment that covers the audio spectrum from a low 20Hz all the way up to 25kHz. To enhance the classic EQ experience, the front panel includes a switch that will select either a "Jensen Transformer-Balanced" or "Active-Balanced" output. The Rear Panel Connect the EQF 810 to virtually any line level source: balanced, unbalanced, or mixer inserts. The EQF 810 has high headroom that will handle balanced signals up to +28dBu. Both balanced XLR and balanced 1/4" jacks are provided for signal connections to and from the EQF 810. The Designer The EQF 810 is the work of Vince Poulos, the designer and owner of Speck Electronics. Speck Electronics has been producing quality professional audio products for over 45 years. Founded in 1973, Speck Electronics has consistently provided innovations in audio products for all segments of professional recording and touring. Other products include the via Fader Outboard Fader System, the X.SUM rack mixer, the ASC-V 500 series equalizer, and MicPre 5.0 preamp. 4 Sweepable Bands L Band - a low band that sweeps the low frequencies from 20Hz - 400Hz. This band offers a Peak/Shelf select switch. L/M Band - a switchable low and mid band. This fully parametric section can be switched between a low frequency band that sweeps from 40Hz - 800Hz, or a mid frequency band that sweeps 400Hz - 8kHz. This band has a variable bandwidth adjustment. M Band - a fully parametric mid band with a frequency sweep range from 400Hz to 10kHz. H Band - a high band that adjusts the high frequency from 1.5kHz all the way up to 25kHz. This band also offers a Peak/Shelf select switch. 2 Variable Filters Low Pass - A variable 12dB/Octave filter with Bypass switch is adjustable from 150Hz to 25kHz. High Pass - A variable 12dB/Octave filter with Bypass switch is adjustable from 20Hz to 250Hz. The 5X switch will change the adjustable range from 100Hz to 1.2kHz.

What is the XTRAMIX X6 Mixer? The X6 is a rack mounted analog line mixer that offers features and flexibility for use in the most serious recording applications. It has been designed as a "quiet-transparent" platform that allows you to build a mixing system using the gear you already own. The X6 can be used to connect all your analog outboard gear regardless of the pedigree, interface to AD/DA converters, and, of course, virtually any synth or sampler. It is a fact that not all studios need a console style mixer with slide faders, so the X6 can often replace a studio desk style console and may be a good fit especially if space is at a premium. Features · 4 rack space design · 20 stereo line inputs + stereo mix + 8 group busses. · Each input channel has pannable stereo direct out. · 4 aux send busses. · 0db/12db Gain select on each input channel. · Presence of signal LED on inputs. · In-place solo on all channels. · True stereo aux sends. · 4 stereo aux returns. · Balanced inserts with bypass switch on stereo mix and 8 groups. · Two monitor outputs and independent headphone output. · Expander connectors to add another X6, X.Sum, or other line mixer. · Multi-purpose mounting brackets: 19" rack mount or configured for desktop location. The In's & Out's Connect the X6 to any line level source: balanced, unbalanced, transformer, or transformer-less. The X6 has high headroom that will handle balanced signals up to +28dBu. All audio inputs and outputs are fully balanced and available on TRS connectors. The Designer The X6 is the work of Vince Poulos, the designer and owner of Speck Electronics. Speck Electronics has been producing quality professional audio products for over 45 years. Founded in 1973, Speck Electronics has consistently provided innovations in audio products for all segments of professional recording and touring. Other products include the X.Sum rack mixer, the via Fader outboard fader system, the EQF 810 equalizer, and MicPre 5.0 preamp.
