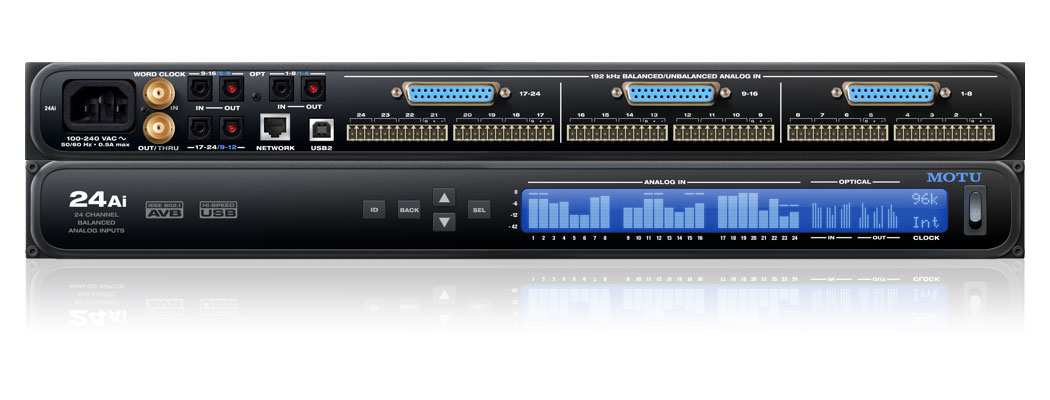

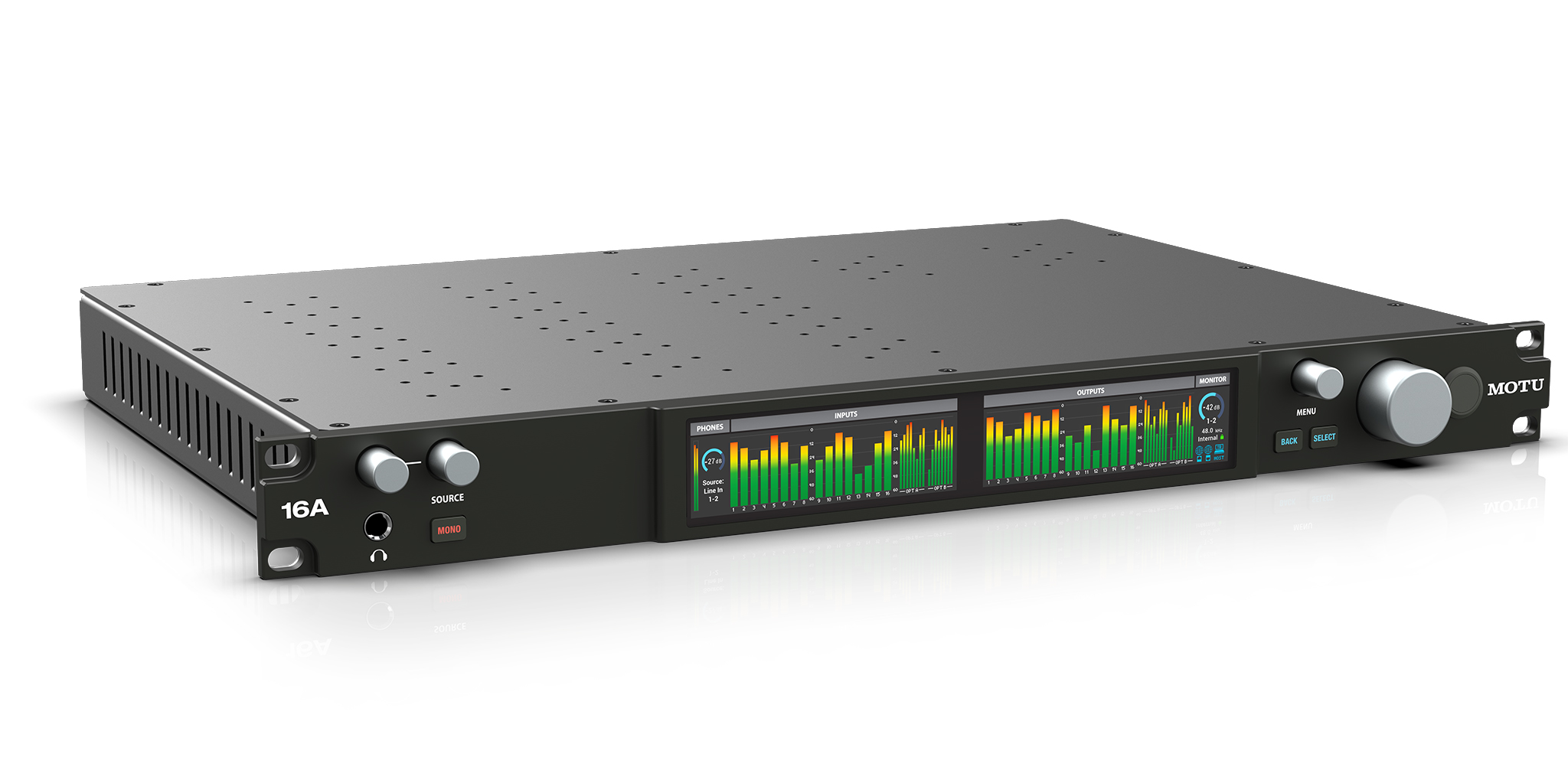

24Ai and 24Ao Feature Summary   Superb audio quality Employs the same industry-recognized analog design as MOTU's groundbreaking 1248, 8M and 16A audio interfaces.   72 simultaneous audio channels 24 high-quality, balanced analog inputs (24Ai) or outputs (24Ao) on three banks of multi-channel connectors (D-sub and Phoenix), plus three banks of 8-channel ADAT optical for 24 analog channels and 48 digital channels.   Universal connectivity Connects to a computer with standard AVB Ethernet or audio class compliant high-speed USB 2.0 (compatible with USB 3.0 and iOS). Discovery app and web app software works alongside any host audio software.   On-board DSP with mixing and effects Flexible 48-input digital mixer modeled after large format mixing consoles, with 12 stereo busses and DSP effects, including reverb, 4-band EQ, gate, and compression.   32-bit floating point processing DSP-driven mixing and effects engine delivers virtually unlimited headroom and the utmost in sound quality.   Modeled vintage effects processing Classic reverb. Compression modeled after the legendary LA-2A compressor. EQ modeled after British analog console EQs.   System expansion Add a 2nd MOTU AVB interface (24Ai, 24Ao, 1248, 8M or 16A) with a simple Cat-5e ethernet cable. Connect up to five MOTU interfaces using a MOTU AVB Switch (sold separately).   AVB audio networking Build a network with multiple interfaces and computers using standard AVB switches and network cabling, with ultra-low network latency, even over long cable runs (100 meters point to point). Stream hundreds of audio channels among devices and computers on the network.   Matrix routing and splitting Send any input to any output, or multiple outputs. Includes routing to and from the computer, plus any devices on the AVB network.   Web app control Control on-board DSP, mixing, device settings, and network audio routing from web app software running in your favorite browser on a laptop, tablet or smart phone connected by wire or Wi-Fi to your local area network.   Stand-alone mixing with wireless control Connect an Apple Airport™ or other Wi-Fi router directly to the 24Ai or 24Ao with a standard Ethernet cable and control powerful mixing and DSP effects from your smart phone or tablet, without a computer. Great for live sound mixing.   ADAT digital I/O Use the 24Ai or 24Ao as a 24-channel optical expander for other gear. 24 channels at 44.1/48 kHz or 12 channels at 88.2/96 kHz.   Comprehensive metering The large backlit 324 x 24 LCD lets you view all signal activity at a glance with detailed metering for all analog and digital I/O. Access hardware settings from a simple and convenient menu.   AudioDesk Includes AudioDesk workstation software for Mac and Windows with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering.

Firewire Audiointerface und 28/16 Digital Mixer mit FX     24-Bit / 192 kHz     integrierter DSP für EQ     Compressor und Reverb     neue CueMix Console     2 Mic- Gitarren-Eingänge mit integriertem Hardware-Limiter48V Phantomspeisung     8 symmetrische Line I/O´s + 2 x XLR Main Out     2 Send     2 x ADAT I/O     coaxial S/PDIF I/O (24-bit 96kHz)     MIDI I/O     Word Clock I/O     2x Kopfhörer-Ausgang     für Mac & PC     Format: 19” - 1HE

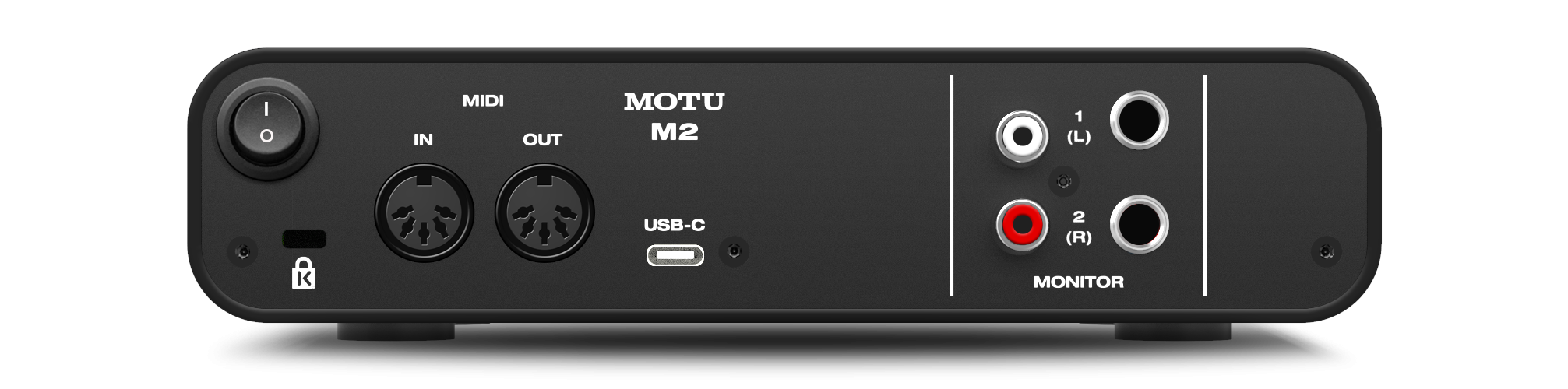

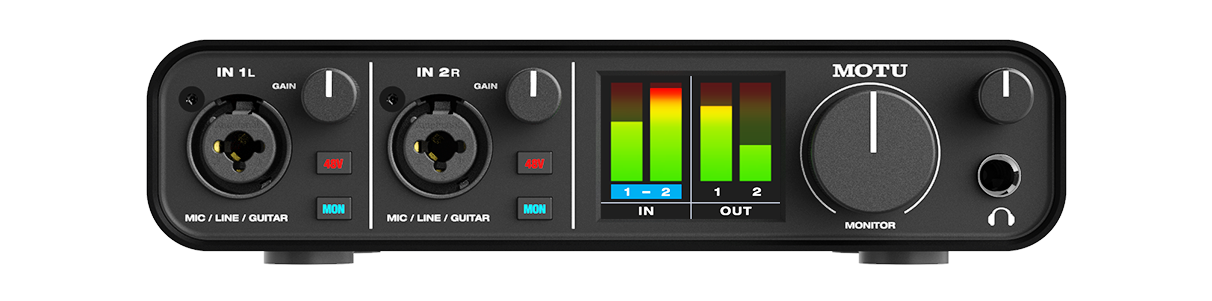

Feature     2-in / 2-out USB audio interface with studio-quality sound     Best-in-class audio quality driven by ESS Sabre32 Ultra™ DAC Technology     Best-in-class speed (ultra-low latency) for host software processing     Best-in-class metering for all inputs/outputs with a full-color LCD     2x mic/line/hi-Z guitar inputs on combo XLR/TRS     Individual preamp gain and 48V phantom power for each input     Hardware (direct) monitoring for each input (mono or stereo)     Measured -129 dB EIN on mic inputs     2x balanced, DC-coupled 1/4-inch TRS outputs     Measured 120 dB dynamic range on the 1/4-inch balanced TRS outputs     2x RCA (unbalanced) analog out (mirrored)     1x headphone out (driven by ESS converters) with independent volume control     MIDI in/out     Support for 44.1 to 192 kHz sample rates     USB audio class compliant for plug-and-play operation on Mac (no driver required)     Windows driver with 2.5 ms Round Trip Latency (32 sample buffer at 96 kHz)     Mac driver (optional, for 2.5 ms RTL@32/96 kHz and loopback feature)     iOS compatible (USB audio class compliant)     Driver loopback for capturing host output, live streaming and podcasting     Bus powered USB-C (compatible with USB Type A) with power switch (USB cable included)     Rugged metal construction     Workstation software included (MOTU Performer Lite 10 and Ableton Live Lite 10)     100+ instruments (in Performer Lite)     Over 6 GB of included free loops, samples and one-shots from industry leading libraries     Kensington security slot     Built in the USA

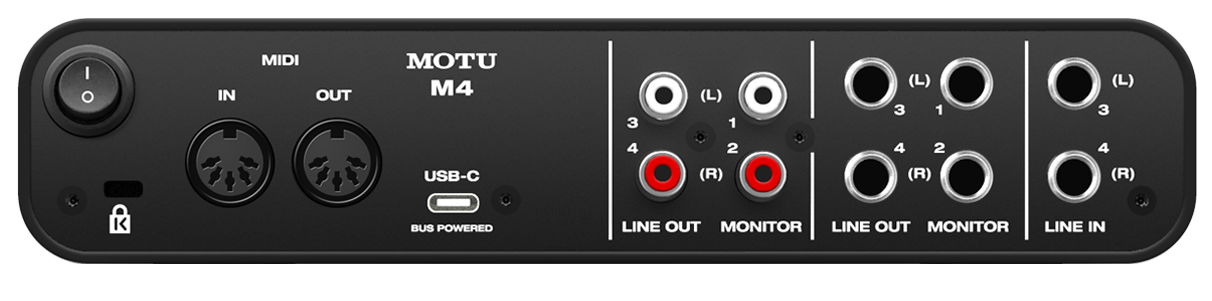

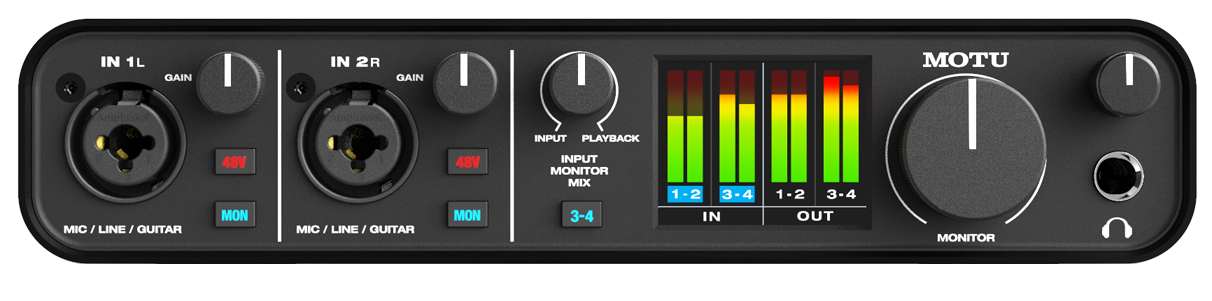

Feature     4-in / 4-out USB audio interface with studio-quality sound     Best-in-class audio quality driven by ESS Sabre32 Ultra™ DAC Technology     Best-in-class speed (ultra-low latency) for host software processing     Best-in-class metering for all inputs/outputs with a full-color LCD     2x mic/line/hi-Z guitar inputs on combo XLR/TRS     Individual preamp gain and 48V phantom power for each input     2x balanced 1/4-inch line inputs     Hardware (direct) monitoring for each input (mono or stereo for inputs 1-2, stereo for inputs 3-4)     Monitor mix knob to balance live inputs and computer playback     Measured -129 dB EIN on mic inputs     4x balanced, DC-coupled 1/4-inch TRS outputs     Measured 120 dB dynamic range on the 1/4-inch balanced TRS outputs     4x RCA (unbalanced) analog out (mirrored)     1x headphone out (driven by ESS converters) with independent volume control     MIDI in/out     Support for 44.1 to 192 kHz sample rates     USB audio class compliant for plug-and-play operation on Mac (no driver required)     Windows driver with 2.5 ms Round Trip Latency (32 sample buffer at 96 kHz)     Mac driver (optional, for 2.5 ms RTL@32/96 kHz and loopback feature)     iOS compatible (USB audio class compliant)     Driver loopback for capturing host output, live streaming and podcasting     Bus powered USB-C (compatible with USB Type A) with power switch (USB cable included)     Rugged metal construction     Workstation software included (MOTU Performer Lite 10 and Ableton Live Lite 10)     100+ instruments (in Performer Lite)     Over 6 GB of included free loops, samples and one-shots from industry leading libraries     Kensington security slot     Built in the USA
