A 5000-CP General Description
The A 5000-CP passive antenna provides an optimum solution for both transmitting and receiving RF signals throughout the UHF spectrum. Installations have demonstrated that the circular polarization of this antenna minimizes variations in signal strength and almost eliminates multipath problems, a primary cause dropouts. The gain of this antenna over the entire UHF band is superior to common `off the shelf´ antennas.The wideband design (450-960MHz) of the A 5000-CP allows it to accommodate antenna distribution systems for either wireless monitors or wireless microphones across multiple frequency ranges, offering maximum flexibility when designing complex RF systems.Features
High Gain
Minimized Multipath
Broadband
Delivery Includes
A 5000-CP
Adapter BNC to N
User Manual
Technical Data
Antenna: circular polarized helical, Half power beam width: + / - 40°---
Antenna gain: 8 dBi
Bandwidth: (- 3 dB) 450 - 960 MHz
Connector: N (female)
Weight: 3.1 Ibs. (1.41 kg)
Dimensions: 356 x 356 x 140 mm
Antenna boosterWith a 42 MHz switching bandwidth and 10 dB amplification, this antenna booster is designed for the upgraded performance characteristics of ew G3 receivers. Up to two AB 3 boosters for each antenna feed can compensate for RF losses through remote antenna cables. Power is supplied to the boosters over the ASA 1/NT 1-1 through the BNC cable. Technical Data
Switching bandwidth : 42 MHz
RF frequency range : 516 ..... 865 MHz
Gain : > 10 dB
Antenna connector : BNC
Impedance : 50 Ohm
Dimensions : 95 x 47 x 21 mm
Weight : 60 g
Variants
AB 3-A (516-558MHz)
AB 3-G (566-608 MHz)
AB 3-GB (606-648 MHz)
AB 3-B (626-668 MHz)
AB 3-C (734-776MHz)
AB 3-D (780-822 MHz)
AB 3-E (823-865 MHz)
Antenna boosterWith a 42 MHz switching bandwidth and 10 dB amplification, this antenna booster is designed for the upgraded performance characteristics of ew G3 receivers. Up to two AB 3 boosters for each antenna feed can compensate for RF losses through remote antenna cables. Power is supplied to the boosters over the ASA 1/NT 1-1 through the BNC cable. Technical Data
Switching bandwidth : 42 MHz
RF frequency range : 516 ..... 865 MHz
Gain : > 10 dB
Antenna connector : BNC
Impedance : 50 Ohm
Dimensions : 95 x 47 x 21 mm
Weight : 60 g
Variants
AB 3-A (516-558MHz)
AB 3-G (566-608 MHz)
AB 3-GB (606-648 MHz)
AB 3-B (626-668 MHz)
AB 3-C (734-776MHz)
AB 3-D (780-822 MHz)
AB 3-E (823-865 MHz)
Antenna boosterWith a 42 MHz switching bandwidth and 10 dB amplification, this antenna booster is designed for the upgraded performance characteristics of ew G3 receivers. Up to two AB 3 boosters for each antenna feed can compensate for RF losses through remote antenna cables. Power is supplied to the boosters over the ASA 1/NT 1-1 through the BNC cable. Technical Data
Switching bandwidth : 42 MHz
RF frequency range : 516 ..... 865 MHz
Gain : > 10 dB
Antenna connector : BNC
Impedance : 50 Ohm
Dimensions : 95 x 47 x 21 mm
Weight : 60 g
Variants
AB 3-A (516-558MHz)
AB 3-G (566-608 MHz)
AB 3-GB (606-648 MHz)
AB 3-B (626-668 MHz)
AB 3-C (734-776MHz)
AB 3-D (780-822 MHz)
AB 3-E (823-865 MHz)
Antenna boosterWith a 42 MHz switching bandwidth and 10 dB amplification, this antenna booster is designed for the upgraded performance characteristics of ew G3 receivers. Up to two AB 3 boosters for each antenna feed can compensate for RF losses through remote antenna cables. Power is supplied to the boosters over the ASA 1/NT 1-1 through the BNC cable. Technical Data
Switching bandwidth : 42 MHz
RF frequency range : 516 ..... 865 MHz
Gain : > 10 dB
Antenna connector : BNC
Impedance : 50 Ohm
Dimensions : 95 x 47 x 21 mm
Weight : 60 g
Variants
AB 3-A (516-558MHz)
AB 3-G (566-608 MHz)
AB 3-GB (606-648 MHz)
AB 3-B (626-668 MHz)
AB 3-C (734-776MHz)
AB 3-D (780-822 MHz)
AB 3-E (823-865 MHz)
Antenna boosterWith a 42 MHz switching bandwidth and 10 dB amplification, this antenna booster is designed for the upgraded performance characteristics of ew G3 receivers. Up to two AB 3 boosters for each antenna feed can compensate for RF losses through remote antenna cables. Power is supplied to the boosters over the ASA 1/NT 1-1 through the BNC cable. Technical Data
Switching bandwidth : 42 MHz
RF frequency range : 516 ..... 865 MHz
Gain : > 10 dB
Antenna connector : BNC
Impedance : 50 Ohm
Dimensions : 95 x 47 x 21 mm
Weight : 60 g
Variants
AB 3-A (516-558MHz)
AB 3-G (566-608 MHz)
AB 3-GB (606-648 MHz)
AB 3-B (626-668 MHz)
AB 3-C (734-776MHz)
AB 3-D (780-822 MHz)
AB 3-E (823-865 MHz)
Antenna boosterWith a 42 MHz switching bandwidth and 10 dB amplification, this antenna booster is designed for the upgraded performance characteristics of ew G3 receivers. Up to two AB 3 boosters for each antenna feed can compensate for RF losses through remote antenna cables. Power is supplied to the boosters over the ASA 1/NT 1-1 through the BNC cable. Technical Data
Switching bandwidth : 42 MHz
RF frequency range : 516 ..... 865 MHz
Gain : > 10 dB
Antenna connector : BNC
Impedance : 50 Ohm
Dimensions : 95 x 47 x 21 mm
Weight : 60 g
Variants
AB 3-A (516-558MHz)
AB 3-G (566-608 MHz)
AB 3-GB (606-648 MHz)
AB 3-B (626-668 MHz)
AB 3-C (734-776MHz)
AB 3-D (780-822 MHz)
AB 3-E (823-865 MHz)
Broadband Antenna BoosterFrequency range 470 – 866 MHzGain from 5 to 15 dBBypass operation if booster feed is missingDisplay of settings via two multi-colour LEDsRugged metal housing
Aktiver Antennen-Kombiner für evolution wireless G4 Systeme. Der AC 41 betreibt bis zu vier Stereosender der ew-Serie mit einer gemeinsamen Antenne. Die Spannungsversorgung der SR IEM G4 Sender erfolgt vom Netzteil NT 3-1 (im Lieferumfang des SR IEM G4) über die BNC-Kabel und macht somit den Einsatz zusätzlicher Netzteile obsolet.
Bis zu 4 Wireless Stereosender mit einer Antenne verwenden
Spannungsversorgung der SR IEM G4 Sender vom Netzteil über die BNC-Kabel, keine weiteren Netzteile erforderlich
Kompatibel mit G3 und G4 Systemen
The passive directional antenna works in the frequency range between 1,400 and 2,400MHz. The use of two AD 1800s in diversity operation allows the user to optimise the antenna positions, and thus the range, in difficult RF environments. The antenna’s directivity boosts the antenna signal by 4dB, the front-to-back ratio is >14dB. An ideal antenna cable is the low-attenuation GZL 5000, which is available in various lengths.
ASP 113
Passive antenna splitter2 x 1 : 2 (ASP 212) or passive antenna splitter 1 x 1 : 3 (ASP 113)and passive antenna splitter 1 x 1 : 4 (ASP 114). DC-coupled for use with antenna boosters. Special version with powering also available for using A 12antennas with EM 3031/32 receivers.Frequency range 30-950 MHzMax. current 0.3 A DCAttenuation approx.4 dB (ASP 212)approx. 6 dB (ASP 113)approx. 8 dB (ASP 114)RF connector BNC socket
ASP 114 Passive antenna splitter2 x 1 : 2 (ASP 212) or passive antenna splitter 1 x 1 : 3 (ASP 113)and passive antenna splitter 1 x 1 : 4 (ASP 114). DC-coupled for use with antenna boosters. Special version with powering also available for using A 12antennas with EM 3031/32 receivers.Frequency range 30-950 MHzMax. current 0.3 A DCAttenuation approx.4 dB (ASP 212)approx. 6 dB (ASP 113)approx. 8 dB (ASP 114)RF connector BNC socket
ASP 212 Passive antenna splitter2 x 1 : 2 (ASP 212) or passive antenna splitter 1 x 1 : 3 (ASP 113)and passive antenna splitter 1 x 1 : 4 (ASP 114). DC-coupled for use with antenna boosters. Special version with powering also available for using A 12antennas with EM 3031/32 receivers.Frequency range 30-950 MHzMax. current 0.3 A DCAttenuation approx.4 dB (ASP 212)approx. 6 dB (ASP 113)approx. 8 dB (ASP 114)RF connector BNC socket
Small accupack with two AA size NiMH cells for use with the SK 3063-U and SK 50 bodypack transmitters. When used in conjunction with the GA 3041-Bbattery adaptor, it is also suitable for the EK 3041 receiver.
Overview
The MAT 133-S is a rugged and unobtrusively designed table stand. It provides a stable ground for the metal gooseneck MZH 3015 with a length of 150 mm for use with the ME 34, ME 35 and ME 36 microphone heads. The rugged gooseneck is fitted with a balanced, floating XLR-3 output, enabling the microphone to be powered by the SL DI 4 XLR.The ME 36 is a condenser microphone capsule. This mini shotgun microphone features for an outstanding background noise rejection.The SL DI 4 XLR four input Dante-preamp is the ideal interface for wireless microphone receivers. As analog to digital audio converter, it allows for adding analog microphone systems to a Dante system. All Sennheiser XLR microphones and all wireless microphone receivers as well as all SpeechLine Wired installation microphones are compatible with the SL DI 4 XLR.
Features
Highest speech-intelliibility
Phantom power via PoE
Remote controllable gain level
Daisy-chaining possible
What's in the box?
1 SLDI 4 XLR
4 MAT 133-S
4 MZH 3015
4 ME 36
Overview
The MEB 114-S is a sturdy on-table boundary layer microphone that constitutes an improvement for any conferencing system. It features a programmable microphone button and a bi-color LED ring for status indication. Thanks to its rugged housing and its high-quality microphone capsule the MEB 114-S ensures the best speech intelligibility.The SL DI 4 XLR four input Dante™ preamp is the ideal interface for wireless microphone receivers. As analog to digital audio converter, it allows for adding analog microphone systems to a Dante™ system. All Sennheiser XLR microphones and all wireless microphone receivers as well as all SpeechLine Wired installation microphones are compatible with the SL DI 4 XLR.
Features
Great speech-intelliibility
Phantom power via PoE
Remote controllable gain level
Daisy-chaining possible
What's in the box?
1 SLDI 4 XLR
4 MEB 114-S
Overview:
The MAT 133-S with the MEG 14-40 is as versatile as it is easy to operate. Experience clearly structured meetings and discussions as the intuitive handling will lead the focus on the content – not the technology. The proven Sennheiser KE 10 capsule provides best speech intelligibility.Powered by the SL DI 4 XLR with just a standard XLR 3 cable, the microphone is integrated in a bigger setup with a finger snap and makes even spontaneous discussion setups possible.The SL DI 4 XLR four input Dante™ preamp is the ideal interface for wireless microphone receivers. As analog to digital audio converter, it allows for adding analog microphone systems to a Dante™ system. All Sennheiser XLR microphones and all wireless microphone receivers as well as all SpeechLine Wired installation microphones are compatible with the SL DI 4 XLR.
Features:
Great speech-intellibility
Phantom power via PoE
Remote controllable gain level
Daisy-chaining possible
What's in the box?
1 SL DI 4 XLR
4 MAT 133-S
4 MEG 14-40
Overview
The MAT 133-S with the MEG 14-40 is as versatile as it is easy to operate. Experience clearly structured meetings and discussions as the intuitive handling will lead the focus on the content – not the technology. The proven Sennheiser KE 10 capsule provides best speech intelligibility.Powered by the SL DI 4 XLR with just a standard XLR 3 cable, the microphone is integrated in a bigger setup with a finger snap and makes even spontaneous discussion setups possible.The SL DI 4 XLR four input Dante™ preamp is the ideal interface for wireless microphone receivers. As analog to digital audio converter, it allows for adding analog microphone systems to a Dante™ system. All Sennheiser XLR microphones and all wireless microphone receivers as well as all SpeechLine Wired installation microphones are compatible with the SL DI 4 XLR.
Features
Great speech-intellibility
Phantom power via PoE
Remote controllable gain level
Daisy-chaining possible
What's in the box?
1 SL DI 4 XLR
4 MAT 133-S
4 MEG 14-40

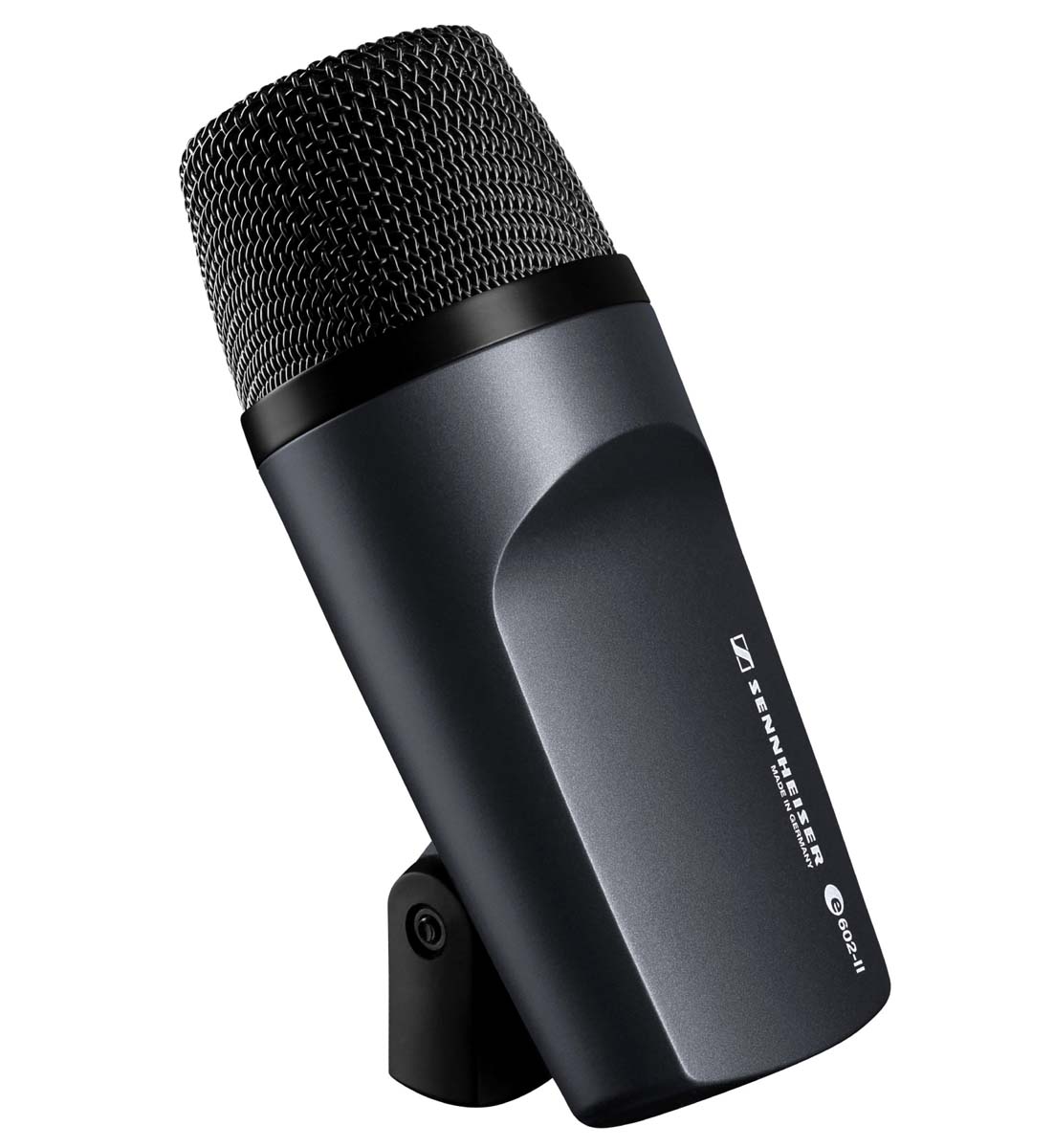

Sennheiser E602 IIThe e 602 II is a cardioid instrument microphone especially suitable for use with bass drums, bass guitar cabs, tubas and other low frequency instruments.Features: Rugged, lightweight aluminium body for stable positioning on long microphone boom arms Lightweight high-performance voice coil construction Fast transient response Low frequency extension Ideal for direct use on the most problematic bass signal Frequency-independent directivity provides isolation from other on-stage signals Humbucking coil Integral stand mountIncludes: 1 e 602-II 1 pouch Instructions for useTechnical Specifications:Transducer principle (Microphone) dynamicPick-up pattern cardioidFrequency response 20.....16000 HzSensitivity in free field, no load (1kHz) 0,25 mV/Pa; (50 Hz) 0,9 mV/PaNominal impedance 350 OhmMin. terminating impedance 1000 OhmConnector XLR-3Dimensions d 60 x 153 mmWeight 318 g
The classic – thanks to clip and character.
Character instead of mainstream. Close to the attack, tough, easy to handle: the e 604 has long since been a classic on the rims of tom-toms and snares the world over. Thanks to the practical clip-on holder, the microphone can be mounted in seconds and positioned however you choose. Lightly emphasized in the upper mids and highs, the e 604 provides a forceful sound, open and clear in the lows. The snare receives a warm to dynamic presence; woodwind instruments also receive a marked spaciousness. This is no wonder, since the sound design is based on the legendary MD 421 microphone.
Features
Compact dynamic microphone
Transmits extreme sound pressure levels (over 160 dB) without distortion
Impact-resistant fiberglass reinforced housing
Very low structure-borne noise
Extremely simple handling and flexible positioning
Hum compensating coil
Integrated stand mount
Holds everywhere.
A solid choice for brass and woodwind players. With its flexible gooseneck, the e 608 snuggles right up to the instrument, while the multifunctional clip lets it find an optimal position on every instrument. The shock-mounted capsule reliably protects against structure-borne noise. When something is in the air – it doesn't get lost here. The e 608 comes closer to the heart of each instrument and transmits its character in soft, warm tones.
Features
Dynamic microphone with gooseneck
Low sensitivity to structure-borne noise
Extremely rugged fiberglass housing with tear-resistant cable (XLR connector)
Simple handling and flexible positioning
Hum compensating coil
Highly effective shock mount
189,00 €*
